GJD VS-CW-P light LED illuminator, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)

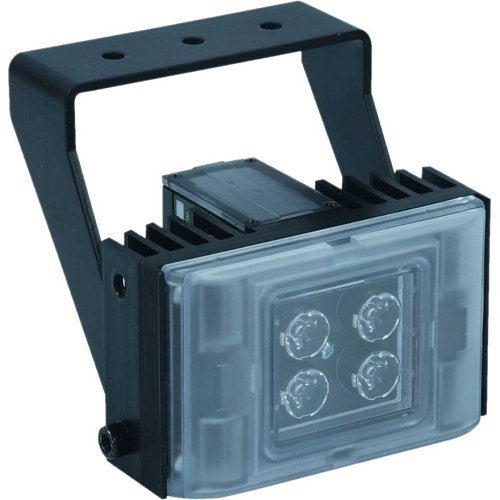

GJD VS-CW-P is a light LED illuminator.
The Clarius® PLUS range of high performance White Light illuminators are designed to provide class leading performance, long life and ultra low maintenance. Incorporating the latest surface mount LED's with enhanced optical output and outstanding reliability, they deliver excellent night-time images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.
The Clarius® PLUS range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30°x20°, 60°x30°, 80°x60° & 120°x50° elliptical beam profiles.
Key features
- Elliptical beam profiles
- Distances up to 68m
- Angle 10° circular, 30°, 60° and 95°
If you are matching this to an existing installation, work from the VS-CW-P part number rather than the description.
-
Download
- VS-CW-P — User Manual
Specifications
Certifications
General information
Miscellaneous
Physical characteristics
Power description
Technical information
Attributes
Specifications
| Brand Name | GJD |
|---|---|
| Manufacturer Part Number | VS-CW-P |
| Product Type | Infrared Illuminator |
Certifications
| Certifications & Standards | EN60529 - 1992, EN60598 - 2004, EN60825-1, EN61000, FCC Part 15. 107, 15. 108 Class B |
|---|
General information
| Application/Usage | Border, Commercial, Education, Government, Heritage, Industrial, Residential, Transportation |
|---|
Miscellaneous
| Additional Information | High efficiency surface mount high power LED's with advanced current limited integral control circuitry. Robust high quality aluminium extrusion. Powder coated stainless steel wall mount. |
|---|---|
| Compatibility | IP cameras via PoE (power over ethernet) |
| Environmental status | Yes |
| Features | Interchangeable Diffuser System (IDS), LED Illumination, PoE, Self-cleaning Lens Coating, SMT LED Technology, Surface Mount, Wall Mountable |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 78.00mm |
| Durability | Vandalproof, Weatherproof |
| Height | 68.00mm |
| Material | Anodized Aluminum, Polycarbonate |
| Weight | 750.00g |
| Width | 110.00mm |
Power description
| Power Source | AC Power, DC Power |
|---|
Technical information
| Device Supported | Camera |
|---|---|
| Illumination Distance | 68m |
Attributes
| Compatibility | IP cameras via PoE (power over ethernet) |
|---|---|
| Device Supported | Camera |
| Indoor or outdoor use | Indoor, Outdoor |
| Power Source | AC Power, DC Power |
| Weight | 750.00g |
