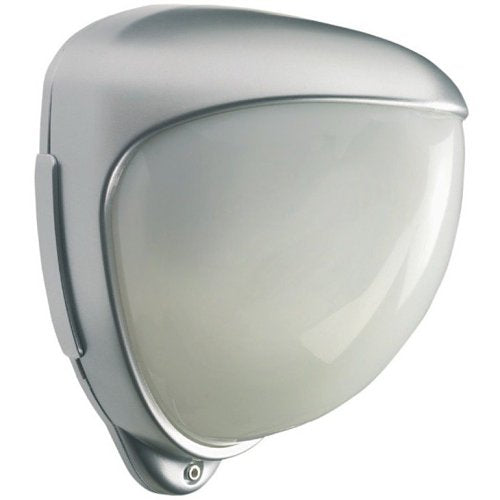

GJD GJD450 PIR motion detector, Pole, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
GJD GJD450 is a PIR motion detector.
In depth product detail
The BS8418 compliant D-TECT X MKIII detectors all feature quad PIR sensor modules, stylish plastic IP65 fully tampered housings with a discreet internal antenna. Units accept 2 x 3 Volt CR123 batteries (not provided), 500m RF transmission range on 868MHz and individual code for pairing to the receiver. The receiver (GJD392) can be linked in its base form to 4 detectors and this can then be expanded up to 16 detectors, with the use of the GJD393 4-way expansion module.
Due to the number of individual detector codes (in excess of 16M), multiple receivers can be used on any site.
Key features
- Adjustable pan and tilt
- Available in a range of beam lengths
- Discreet internal antenn
If you are matching this to an existing installation, work from the GJD450 part number rather than the description.
Specifications
Miscellaneous
Physical characteristics
Power description
Product information
Technical information
Attributes
Specifications
| Brand Name | GJD |
|---|---|
| Manufacturer Part Number | GJD450 |
| Product Type | Motion Sensor |
Miscellaneous
| Compatibility | GJD Clarius Led And White Lighting Range |
|---|---|
| Features | Adjustable pan and tilt, Aesthetically pleasing design, Discreet internal antenna, Easy to install, Highly cost effective, Low Battery Indicator, Modern design, Twin PIRs |
| Indoor or outdoor use | Outdoor |
Physical characteristics
| Depth | 115.00mm |
|---|---|
| Height | 145.00mm |
| Material | ABS |
| Width | 120.00mm |
Power description
| Input Voltage | 12-24V AC, DC |
|---|---|
| Power Source | Battery |
Product information
| Mount Type | Pole Mount, Wall Mount |
|---|
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Maximum Motion Sensing Distance | 50m |
| Maximum Outdoor Detection Range | 50m |
| Maximum Viewing Angle | 180° |
| Passive Infrared Sensor (PIR) | Yes |
| Sensor Type | Infrared Sensor |
| Wireless Operating Distance | 500m |
| Wireless Technology | Infrared, RF |
Attributes
| Compatibility | GJD Clarius Led And White Lighting Range |
|---|---|
| Input Voltage | 12-24V AC, DC |
| Power Source | Battery |
