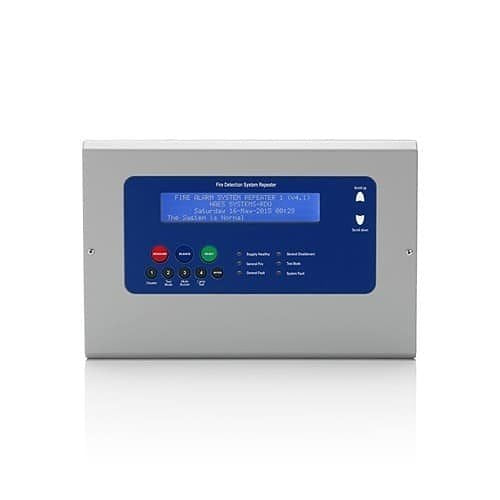

Haes Technologies XL-RDU remote display unit, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Haes Technologies XL-RDU is a remote display unit.
This page covers Haes Technologies part XL-RDU. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover number of standard zones, battery run time, battery voltage among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Number of Standard Zones: 12. This is the figure the record carries for this exact part number.
- Battery Run Time: 1hr. Parts in the same family can differ here, so check the code rather than the family.
- Battery Voltage: 12.00V. It is listed for this part number, not for the range as a whole.
- Certifications & Standards: EN54-4 - 1988. Where your specification names a figure, compare it against this one before ordering.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Parts in the same family can differ here, so check the code rather than the family.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. This is the figure the record carries for this exact part number.
- Communication Technology: RS-485. Where your specification names a figure, compare it against this one before ordering.
- Colour: Silver. It is listed for this part number, not for the range as a whole.
- Depth: 42.00mm. This is the figure the record carries for this exact part number.
- Height: 204.00mm. Parts in the same family can differ here, so check the code rather than the family.
- Width: 305.00mm. It is listed for this part number, not for the range as a whole.
Use cases
Specify this part where the remote display unit role is already decided. The record carries no placement or mounting entry, so nothing is stated here about where it belongs. Confirm the siting against the manufacturer's own documentation before ordering.
If you are matching this to an existing installation, work from the XL-RDU part number rather than the description.
-
Download
- XL-RDU — User Manual
Specifications
Technical information
Battery information
Certifications
Network & communication
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Haes Technologies |
|---|---|
| Manufacturer Part Number | XL-RDU |
| Product Type | Remote Display Unit |
Technical information
| Number of Standard Zones | 12 |
|---|
Battery information
| Battery Run Time | 1hr |
|---|---|
| Battery Voltage | 12.00V |
Certifications
| Certifications & Standards | EN54-4 - 1988 |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Network & communication
| Communication Technology | RS-485 |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 42.00mm |
| Height | 204.00mm |
| Width | 305.00mm |
Power description
| Input Voltage | 24V DC |
|---|
Attributes
| Input Voltage | 24V DC |
|---|
