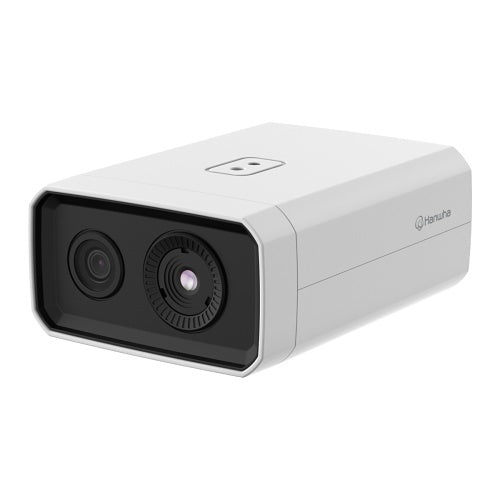

Hanwha Vision TNM-C3620TDR ai thermal camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNM-C3620TDR is an ai thermal camera from the T range.
Introducing the Hanwha TNM-C3620TDR Bi-Spectrum 2MP Indoor AI Thermal Camera, designed to elevate your security experience. This advanced camera features a 4.7 mm fixed focal lens, providing exceptional clarity and detail in every image. With its innovative bi-spectrum technology, it seamlessly integrates thermal and visual imaging, ensuring reliable performance in various lighting conditions.
The sleek white design complements any indoor setting, making it a perfect addition to your surveillance system. Don't compromise on safety—invest in the Hanwha TNM-C3620TDR today and enjoy peace of mind with cutting-edge technology at your fingertips!
Key features
- Bi-spectrum monitoring with 2MP visible & QVGA thermal
- AI based Object classification with visible channel only (person)
- Remote Temperature Monitoring within -20 ~ 130°C range
- 6 of quadrangle ROI areas for temperature monitoring
- Compact and Light-weight for Indoor purpose
Specifications
General information
Technical information
Camera
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNM-C3620TDR |
| Product Series | T |
| Product Type | Thermal Camera |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 50.0° |
| Field of View (Vertical) | 36.40° |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 960 |
| Video Signal Format | CVBS (Composite) |
| Wide Dynamic Range | No |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 1280 x 960 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/12000 Second |
|---|---|
| Minimum Illumination | 0.0500lux |
| Shortest Shutter Speed | 2 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.7mm |
|---|---|
| Lens Included | Yes |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 188.50mm |
| Height | 75.00mm |
| Weight | 1.70kg |
| Width | 135.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Ceiling Mount, Wall Mount |
|---|
Storage
| Storage Type | Network Attached Storage (NAS), SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 1.70kg |
