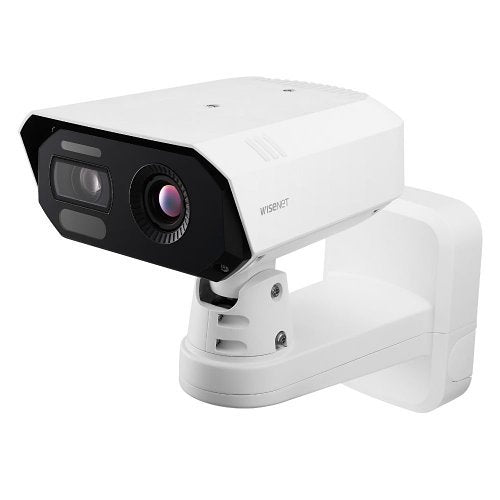

Hanwha Vision TNM-C4940TD ai thermal camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNM-C4940TD is an ai thermal camera from the T range.
Discover the advanced capabilities of the Hanwha TNM-C4940TD Bi-spectrum AI Thermal Camera. This robust device combines a VGA thermal sensor with an 8MP visible sensor, ensuring comprehensive surveillance through dual-channel functionality. Experience exceptional clarity in all conditions with 30fps at all resolutions and a dynamic range of 120dB.
Its AI-driven features include WiseNR II for superior noise reduction and AI-based video analytics for enhanced security monitoring. The camera is designed to withstand harsh environments with IP67 and NEMA4X ratings, and offers flexible installation options with its all-in-one wall and pole mount design. Ideal for demanding outdoor applications, it also supports PoE+ for convenient power supply.
Elevate your security setup with this reliable and high-performance camera.
Key features
- Bi-spectrum; VGA thermal and 8MP visible sensor
- Dual (thermal and visible) channel by one device, one IP
- Maximum 30fps at all resolutions (H.265 / H.264)
- Day and Night(ICR), WDR(120dB)
- Maximum IR viewable length 30m
- Noise reduction; WiseNR II (Based on AI engine, visible only)
- Video Analytics based on AI (visible)
- IP66 / IP67, NEMA4X
- PoE+(IEEE802.3at), 12VDC
- Wall and Pole mount all-in-one design
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNM-C4940TD |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 112.1° |
| Field of View (Vertical) | 58.00° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.40mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 1280 x 960 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0040lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.4-9.3mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 9.30mm |
| Maximum Thermal Focal Length | 9.10mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Weight | 4.53kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 4.53kg |
