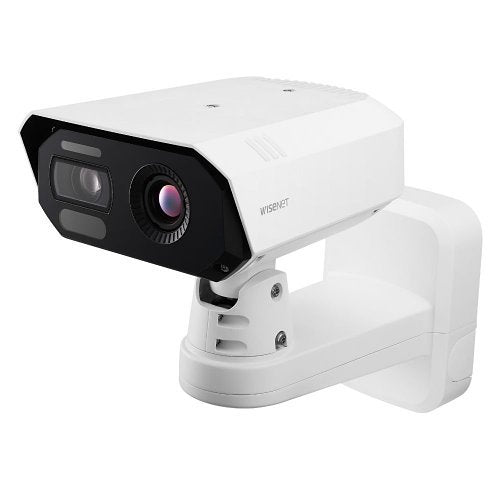

Hanwha Vision TNM-C4950TD ai thermal camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNM-C4950TD is an ai thermal camera from the T range.
Discover the advanced capabilities of the Hanwha TNM-C4950TD Bi-spectrum AI Thermal Camera. This robust device combines a VGA thermal sensor with an 8MP visible sensor, ensuring high-quality imaging in various conditions. Equipped with dual-channel technology, it captures both thermal and visible footage through a single IP.
Experience seamless performance with up to 30fps at all resolutions, supported by H.265 and H.264 codecs. Features like Day/Night functionality, 120dB WDR, and AI-based video analytics enhance monitoring precision. Its durable design is IP67 and NEMA4X rated, suitable for challenging environments.
The camera also supports PoE+ and 12VDC power options and includes versatile mounting options. Upgrade your security setup with this all-in-one solution and ensure comprehensive surveillance coverage.
Key features
- Bi-spectrum; VGA thermal and 8MP visible sensor
- Dual (thermal and visible) channel by one device, one IP
- Maximum 30fps at all resolutions (H.265 / H.264)
- Day and Night(ICR), WDR(120dB)
- Smart codec; WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
- Noise reduction; WiseNR II (Based on AI engine, visible only)
- Video Analytics based on AI (visible)
- IP66 / IP67, NEMA4X
- PoE+(IEEE802.3at), 12VDC
- Wall and Pole mount all-in-one design
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNM-C4950TD |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 42.0° |
| Field of View (Vertical) | 22.80° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 10.90mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 1280 x 960 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 10.9-29mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 29.00mm |
| Maximum Thermal Focal Length | 13.50mm |
| Minimum Aperture | f/1.73 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Weight | 4.53kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 4.53kg |
