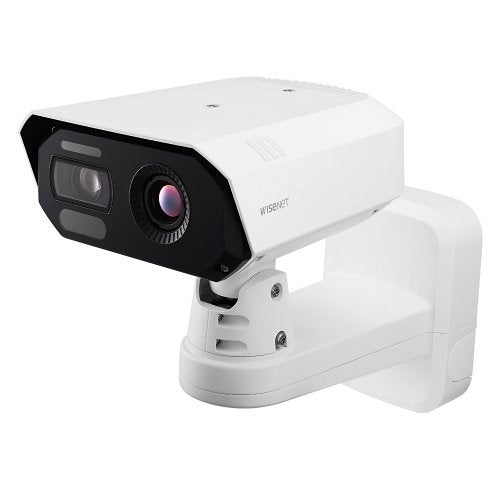

Hanwha Vision TNM-C4960TD ai thermal camera, 8MP

Free Delivery
£ 6,821 34
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision TNM-C4960TD is an ai thermal camera from the T range.

Discover the cutting-edge Hanwha TNM-C4960TD Bi-spectrum AI Thermal Camera, designed for unparalleled surveillance. This robust device combines a VGA thermal sensor with an 8MP visible sensor, ensuring detailed coverage in various lighting conditions. It supports dual-channel operation from a single IP, offering maximum efficiency.

Experience smooth footage with up to 30fps at all resolutions, enhanced by Day/Night capabilities and WDR up to 120dB. The camera features advanced AI-driven codecs, WiseStream III and II, for optimal data management and WiseNR II for superior noise reduction. Equipped with AI-based video analytics, it ensures precise monitoring.

Rated IP67 and NEMA4X, it withstands harsh environments. Power options include PoE+ and 12VDC, with versatile mounting solutions. Elevate your security setup with this all-in-one, high-performance camera.

Don't wait, secure your premises now!

Key features

  • Bi-spectrum; VGA thermal and 8MP visible sensor
  • Dual (thermal and visible) channel by one device, one IP
  • Maximum 30fps at all resolutions (H.265 / H.264)
  • Day and Night(ICR), WDR(120dB)
  • Smart codec; WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
  • Noise reduction; WiseNR II (Based on AI engine, visible only)
  • Video Analytics based on AI (visible)
  • IP66 / IP67, NEMA4X
  • PoE+(IEEE802.3at), 12VDC
  • Wall and Pole mount all-in-one design

If you are matching this to an existing installation, work from the TNM-C4960TD part number rather than the description.

£ 6,821 34
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£6,821.34 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNM-C4960TD
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
42.0°
Field of View (Vertical)
22.80°
Lens Type
Varifocal
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
10.90mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
1280 x 960
Number of Sensors
2
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0050lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
10.9-29mm
Lens Included
Yes
Maximum Focal Length
29.00mm
Maximum Thermal Focal Length
25.00mm
Minimum Aperture
f/1.73
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Weight
4.53kg
Power description
Input Voltage
12V DC
Product information
Mount Type
Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
4.53kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number TNM-C4960TD
Product Series T
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 8MP
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 42.0°
Field of View (Vertical) 22.80°
Lens Type Varifocal
Maximum Aperture f/1
Maximum Frame Rate 30fps
Minimum Focal Length 10.90mm
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Optical Zoom 3.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Certifications

Ingress protection IP66, IP67

Display & graphics

Maximum video resolution 1280 x 960
Number of Sensors 2

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0050lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 10.9-29mm
Lens Included Yes
Maximum Focal Length 29.00mm
Maximum Thermal Focal Length 25.00mm
Minimum Aperture f/1.73

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Weight 4.53kg

Power description

Input Voltage 12V DC

Product information

Mount Type Pole Mount, Wall Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Features Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Input Voltage 12V DC
Weight 4.53kg

Hanwha Vision TNM-C4960TD ai thermal camera

Hanwha Vision TNM-C4960TD ai thermal camera, 8MP

Who this is for

For the installer — this is the ai thermal camera supplied under Hanwha Vision part number TNM-C4960TD. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an ai thermal camera made by Hanwha Vision. The part number TNM-C4960TD is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this ai thermal camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact ai thermal camera I have been quoted? Check the manufacturer part number TNM-C4960TD against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TNM-C4960TD answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
