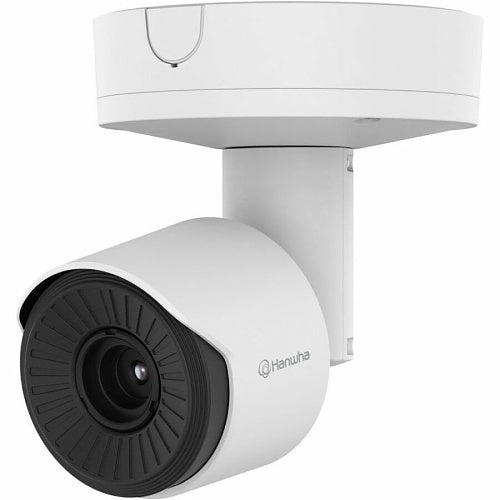

Hanwha Vision TNO-C3020TRA ai thermal camera, 6.6mm
Free Delivery
£
3,484
82
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNO-C3020TRA is an ai thermal camera from the T range.
Discover the Hanwha TNO-C3020TRA Wide Angle QVGA Radiometric AI Thermal Camera, perfect for your remote surveillance needs. Featuring a f/1 maximum aperture, it ensures superior light absorption for high-quality results. Its fixed lens, common in compact cameras, provides a consistent viewing angle.
Powered by DC, this camera guarantees efficient energy use and enhanced surveillance performance. The reliable Backbox Mount ensures easy installation, while Digital Image Stabilization enhances image clarity. Wired connectivity technology delivers exceptional visual quality.
Key features
- For remote surveillance needs, this network camera is best suited
- f/1 maximum aperture for better light absorption and dependable, better-quality results
- Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
- DC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Backbox Mount mount type is reliable and allows trouble-free and easy usage
- Digital Image Stabilization feature for better reliance and usability
- Wired connectivity technology offers maximum visual convenience
£
3,484
82
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNO-C3020TRA
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Night Vision
No
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, MJPEG
Video Resolution
1280 x 720
Camera
Image Sensor Type
Uncooled Microbolometer
Certifications
Ingress protection
IP66
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
6.6mm
Lens Included
Yes
Maximum Focal Length
6.60mm
Maximum Thermal Focal Length
6.60mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Form Factor
Bullet
Weight
1.70kg
Power description
Input Voltage
12V DC
Product information
Diameter
93.80mm
Length
233.50mm
Mount Type
Backbox Mount
Storage
Storage Type
SD Card
Miscellaneous
Environmental certification
CE, FCC, UL
Environmental status
Yes
Features
Audio Detection, Digital Image Stabilization, Mirror, Motion Detection, Multi-view Stream, Privacy Masking, Sound Detection, Tampering Alarm, Temperature Sensor, Video Management System
Attributes
Input Voltage
12V DC
Weight
1.70kg
Impact protection
IK10
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNO-C3020TRA |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Night Vision | No |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | Uncooled Microbolometer |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.60mm |
| Maximum Thermal Focal Length | 6.60mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Form Factor | Bullet |
| Weight | 1.70kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 93.80mm |
|---|---|
| Length | 233.50mm |
| Mount Type | Backbox Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | CE, FCC, UL |
|---|---|
| Environmental status | Yes |
| Features | Audio Detection, Digital Image Stabilization, Mirror, Motion Detection, Multi-view Stream, Privacy Masking, Sound Detection, Tampering Alarm, Temperature Sensor, Video Management System |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 1.70kg |
| Impact protection | IK10 |
Hanwha Vision TNO-C3020TRA ai thermal camera, 6.6mm
