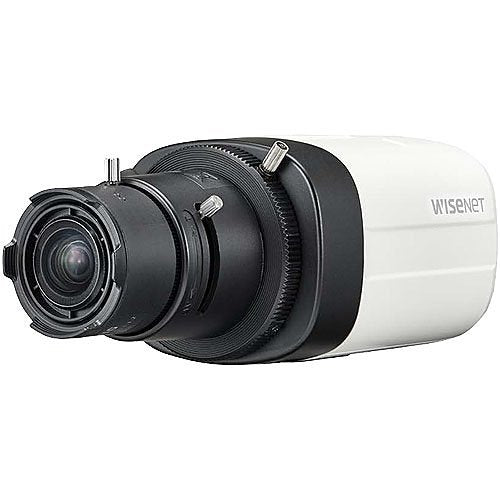

Hanwha Vision HCB-6000 box camera, 2MP
£
106
26
(Incl. VAT)
About this product
Hanwha Vision HCB-6000 is a box camera from the HD+ range.
Wisenet HD+ analogue box camera, 2MP, Full HD(1080p) resolution, Manual focus, AHD/CVBS/CCP/TCP/RS-485, 120 dB WDR, True Day & Night (ICR), Motion detection, Transmission distance up to 500m, 220VAC
Key features
- Low cost and affordable solution for surveillance applications
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 1920 x 1080 video resolution
£
106
26
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
HCB-6000
Product Series
HD+
Product Type
Box Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Lens Mount Type
CS-Mount
Maximum Frame Rate
30fps
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Resolution
1280 x 720
Video Signal Format
AHD, CVBS (Composite), CVI, TVI
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Network & communication
Remote Management
No
Physical characteristics
Colour
Ivory
Depth
92.70mm
Form Factor
Box Mount
Height
59.60mm
Weight
186.00g
Width
68.40mm
Power description
Input Voltage
12V DC
Product information
Mount Type
Desktop Mount, Rack Mount, Wall Mount
Video
Analog Video Signal Format
AHD, CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
Attributes
Indoor or outdoor use
Indoor
Input Voltage
12V DC
Weight
186.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | HCB-6000 |
| Product Series | HD+ |
| Product Type | Box Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Lens Mount Type | CS-Mount |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Resolution | 1280 x 720 |
| Video Signal Format | AHD, CVBS (Composite), CVI, TVI |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Network & communication
| Remote Management | No |
|---|
Physical characteristics
| Colour | Ivory |
|---|---|
| Depth | 92.70mm |
| Form Factor | Box Mount |
| Height | 59.60mm |
| Weight | 186.00g |
| Width | 68.40mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Desktop Mount, Rack Mount, Wall Mount |
|---|
Video
| Analog Video Signal Format | AHD, CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range |
|---|
Attributes
| Indoor or outdoor use | Indoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 186.00g |
