Hanwha Vision HCB-6000PH box camera, 2MP
£
126
96
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)

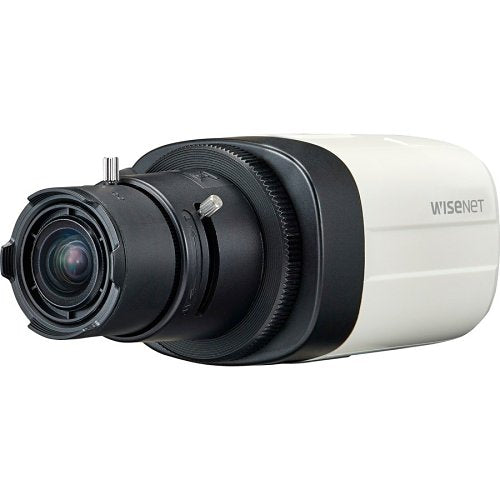

Hanwha Vision HCB-6000PH is a box camera from the HD+ range.
light sensitivity: 0.09 lux in color and 0.009 lux in B/W, compatible with AHD, HDTVI, HDCVI and composite video, BLC/HLC, private masking
Key features
- Full HD resolution
- 0.09 Luxat F1.2 (Color), 0.009 Luxat F1.2 (B/W )
- Day & Night (ICR), WDR (120dB)
£
126
96
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
HCB-6000PH
Product Series
HD+
Product Type
Box Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Maximum Aperture
f/1.2
Maximum Frame Rate
25fps
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Resolution
1280 x 720
Video Signal Format
AHD
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0090lux
Shortest Shutter Speed
1/12000 Second
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
116.60mm
Height
59.60mm
Weight
398.00g
Width
68.40mm
Power description
Input Voltage
220V AC
Video
Analog Video Signal Format
AHD, CVBS (Composite Video Baseband Signal)
Miscellaneous
Indoor or outdoor use
Indoor
Attributes
Input Voltage
220V AC
Weight
398.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | HCB-6000PH |
| Product Series | HD+ |
| Product Type | Box Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Maximum Aperture | f/1.2 |
| Maximum Frame Rate | 25fps |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Resolution | 1280 x 720 |
| Video Signal Format | AHD |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0090lux |
| Shortest Shutter Speed | 1/12000 Second |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 116.60mm |
| Height | 59.60mm |
| Weight | 398.00g |
| Width | 68.40mm |
Power description
| Input Voltage | 220V AC |
|---|
Video
| Analog Video Signal Format | AHD, CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 220V AC |
|---|---|
| Weight | 398.00g |
