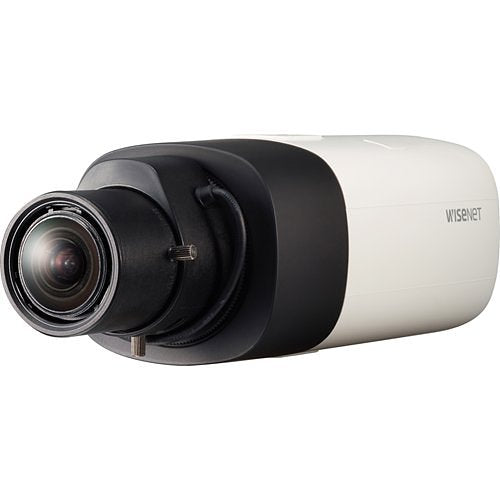

Hanwha Vision XNB-6000 box camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNB-6000 is a box camera from the X range.
Wisenet X powered by Wisenet 5 network box camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, Simple focus, H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS using a Gyro sensor, 12VDC/24VAC/PoE
Key features
- Max. 2MP (1920 x 1080) resolution
- 0.01Luxat F1.2 (Color), 0.001Luxat F1.2 (B/W)
- Max. 60fpsat all resolutions (H.265/H.264)
Specifications
Technical information
Camera
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNB-6000 |
| Product Series | X |
| Product Type | Box Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Lens Mount Type | CS-Mount |
| Maximum Frame Rate | 60fps |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|---|
| Number of Sensors | 1 |
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | No |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 147.80mm |
| Form Factor | Box Mount |
| Height | 66.60mm |
| Weight | 420.00g |
| Width | 73.10mm |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 73.10mm |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | NTSC, PAL |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC, 24V AC |
| Weight | 420.00g |
