Hanwha Vision XNB-6002 box camera, 2MP

Free Delivery
£ 338 79
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision XNB-6002 is a box camera from the X range.

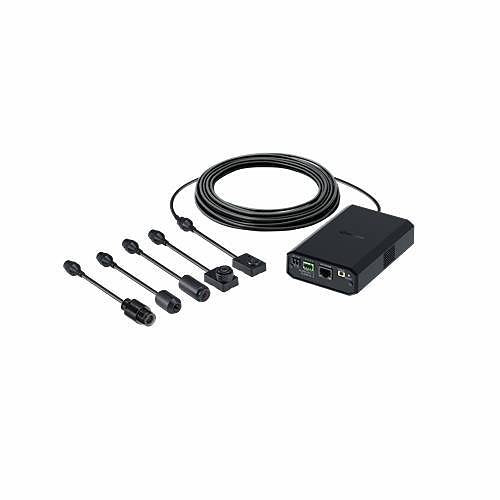

The Wisenet XNB-6002 is a 2-megapixel remote head camera module and has been designed for applications that require a discreet camera such as ATMs. The remote camera heads comprise an image sensor camera equipped with a fixed, pinhole or fisheye lens. The camera lenses are designed to be installed remotely from the other components of the XNB-6002 camera body.

This enables the lens to be installed discretely within an ATM or other locations such as the corner of rooms or in a lift.

Key features

  • Max. 2MP (1920 x 1080) resolution
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Max. 60fps at 2MP (H.265 / H.264)
  • extremeWDR (120dB), Defog, DIS, WiseStreamII
  • Tampering, Loitering, Directional detection, Fog detection
  • Audio detection, Heatmap, Sound classification
  • Queue management, Face detection, People counting
  • Motion detection, Handover
  • Compatible lens: SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA

If you are matching this to an existing installation, work from the XNB-6002 part number rather than the description.

£ 338 79
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£338.79 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNB-6002
Product Series
X
Product Type
Box Cameras
Technical information
Effective resolution
2MP
Maximum Frame Rate
60fps
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Shortest Shutter Speed
1/12000 Second
Physical characteristics
Colour
Black
Weight
420.00g
Power description
Input Voltage
12V DC
Attributes
Input Voltage
12V DC
Weight
420.00g

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number XNB-6002
Product Series X
Product Type Box Cameras

Technical information

Effective resolution 2MP
Maximum Frame Rate 60fps
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -10°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second

Physical characteristics

Colour Black
Weight 420.00g

Power description

Input Voltage 12V DC

Attributes

Input Voltage 12V DC
Weight 420.00g

Hanwha Vision XNB-6002 box camera

Hanwha Vision XNB-6002 box camera, 2MP

Who this is for

For the installer — this is the box camera supplied under Hanwha Vision part number XNB-6002. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a box camera made by Hanwha Vision. The part number XNB-6002 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this box camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact box camera I have been quoted? Check the manufacturer part number XNB-6002 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against XNB-6002 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
