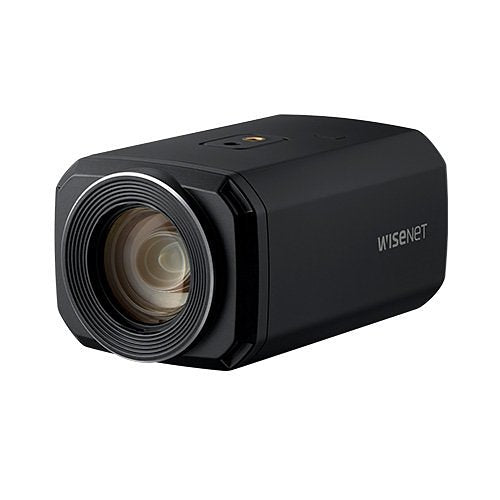

Hanwha Vision XNZ-L6320A box camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNZ-L6320A is a box camera from the X range.
The Hanwha Vision XNZ-L6320A is a 2MP network camera ideal for capturing clear, detailed footage of distant objects. It boasts a powerful 32x optical zoom lens, allowing you to zoom in and identify specifics even at far range. This zoom capability is further complemented by smooth 60fps video capture at all resolutions.
The XNZ-L6320A is versatile in its functionality. It supports various video codecs (H.265, H.264, MJPEG) for optimized storage and transmission, and allows for multiple streaming configurations. Additionally, it excels in low-light conditions with Day/Night mode and Wide Dynamic Range (WDR), while Defog technology ensures clear visuals even in hazy environments.
The camera also features video and audio analytics for enhanced security monitoring. For flexible power options, it supports Power over Ethernet (PoE) and 12V DC input, and includes a microSD card slot for local storage.
Key features
- Maximum 2MP (1920 x 1080) resolution
- 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
- Maximum 60fpsat all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG Codec, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Video & Audio Analytics
- PoE, 12VDC, Micro SD/SDHC/SDXC 1slot 256GB
Specifications
Technical information
Camera
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNZ-L6320A |
| Product Series | X |
| Product Type | Box Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Field of View (Horizontal) | 64.7° |
| Field of View (Vertical) | 38.08° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.40mm |
| Optical Zoom | 32.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.44-142.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 142.60mm |
| Minimum Aperture | f/4.4 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Form Factor | Box Mount |
| Weight | 480.80g |
Power description
| Input Voltage | 12V DC |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Audio Compression, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range |
|---|
Attributes
| Indoor or outdoor use | Indoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 480.80g |
