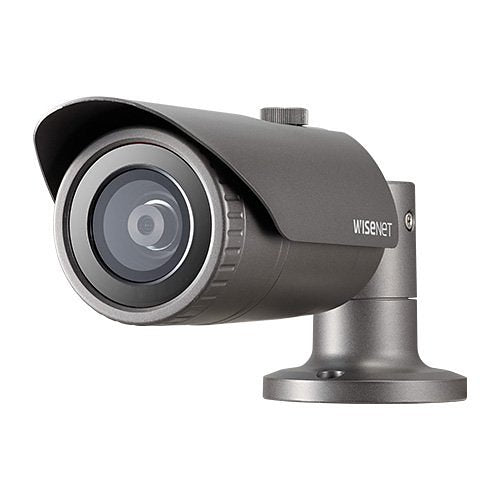

Hanwha Vision QNO-6022R1 bullet camera, 2MP
Free Delivery
£
193
20
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision QNO-6022R1 is a bullet camera from the Q range.
The QNO-6022R1 from Samsung is an affordable network camera line is a 2-megapixel bullet network camera featuring WiseStream II, Samsung compression technology, triple codec H.265/H.264/MJPEG, 4mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Key features
- For remote surveillance needs, this network camera is best suited
- Provides night vision of objects at a distance of up to 25 m
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
-
Download
- QNO-6022R1 — Product Manual
£
193
20
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNO-6022R1
Product Series
Q
Product Type
Bullet Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Vertical)
46.40°
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
CVBS (Composite)
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4mm
Lens Included
Yes
Maximum Focal Length
4.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Bullet
Weight
700.00g
Width
70.00mm
Power description
Input Voltage
12V DC
Product information
Diameter
70.00mm
Length
246.00mm
Mount Type
Junction Box Mount, Pole Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
700.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNO-6022R1 |
| Product Series | Q |
| Product Type | Bullet Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Vertical) | 46.40° |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | CVBS (Composite) |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 4.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Weight | 700.00g |
| Width | 70.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 70.00mm |
|---|---|
| Length | 246.00mm |
| Mount Type | Junction Box Mount, Pole Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 700.00g |
Hanwha Vision QNO-6022R1 bullet camera, 2MP
