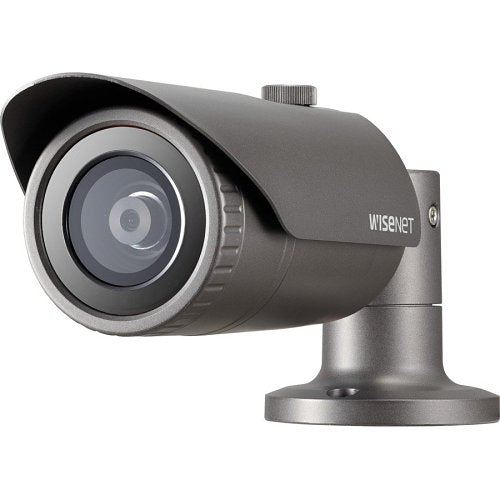

Hanwha Vision QNO-7022R bullet camera, 4MP
About this product
Hanwha Vision QNO-7022R is a bullet camera from the Q range.
Discover the power of high-quality surveillance with the Hanwha QNO-7022R Q Series IP Bullet Camera. This robust camera features a 4MP resolution and a 4mm fixed lens, ensuring clear and detailed footage. Equipped with WDR and rated IP66, it's perfect for both indoor and outdoor environments.
The advanced CMOS sensor not only consumes less power but also delivers superior HD videos compared to CCD sensors. With its ability to provide night vision up to 25 meters, you can rest assured of security around the clock.
Key features
- Network camera - Helps achieve high-quality video results
- Provides night vision of objects at a distance of up to 25 m
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
-
Download
- QNO-7022R — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNO-7022R |
| Product Series | Q |
| Product Type | Bullet Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 78.2° |
| Field of View (Vertical) | 41.20° |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.1500lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 4.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Weight | 700.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 70.00mm |
|---|---|
| Mount Type | Pole Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 700.00g |
