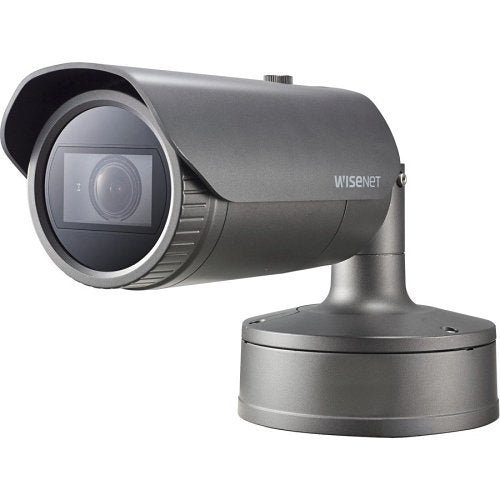

Hanwha Vision XNO-8080R bullet camera, 5MP
Free Delivery
£
783
15
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNO-8080R is a bullet camera from the X range.
the Wisenet X series is unique in the industry with its incomparable image quality, 1/1.8 inch 6 MP CMOS sensor, TDN with sensitivity of 0.07 lux in color and 0 lux in B/W (integrated IR lighting up to max. 50 meters), triple codec H.264/H.265/MJPEG, P-iris, image analysis including: defog, loitering, direction detection, audio detection with classification, digital AutoTracking, motion detection with handover function, 2 x SD(HC/XC) for internal recording support up to 512 GB, Hallway View, LDC (Lens Distortion Correction), bi-directional audio support, USB connection, BLC/HLC
Key features
- 5MP (2560 x 1920) resolution
- 3.7 ~ 9.4mm (2.5x) motorized varifocal lens
- 30fpsat all resolutions (H.265/H.264)
£
783
15
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNO-8080R
Product Series
X
Product Type
Bullet Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.2
Maximum Frame Rate
30fps
Minimum Focal Length
3.70mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.5x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
50.00m
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
2560 x 1920
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.7-9.4mm
Lens Included
Yes
Maximum Focal Length
9.40mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Durability
Vandal Resistant
Form Factor
Bullet
Height
386.60mm
Weight
2.18kg
Power description
Input Voltage
12V DC, 24V AC
Product information
Diameter
91.00mm
Length
368.60mm
Mount Type
Pole Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Ingress Protection, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC, 24V AC
Weight
2.18kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNO-8080R |
| Product Series | X |
| Product Type | Bullet Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.70mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 2.5x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 50.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1920 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.7-9.4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 9.40mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Bullet |
| Height | 386.60mm |
| Weight | 2.18kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 91.00mm |
|---|---|
| Length | 368.60mm |
| Mount Type | Pole Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Ingress Protection, Motion Detection, Privacy Masking, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Weight | 2.18kg |
Hanwha Vision XNO-8080R bullet camera, 5MP
