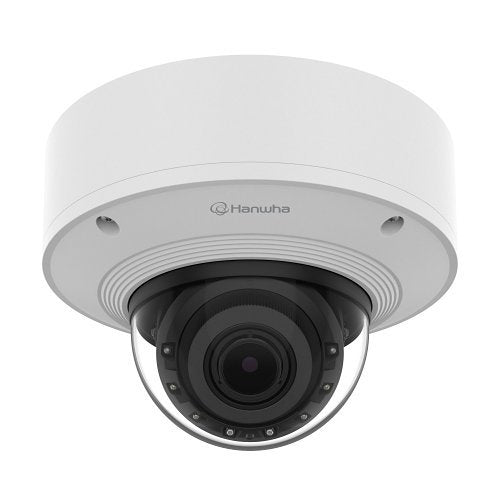

Hanwha Vision PNV-A6081R-E1T camera, 2MP

Free Delivery
£ 1,709 13
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision PNV-A6081R-E1T is a camera from the P range.

Powerful hardware means SolidEDGE is capable of recording up to 5-additional cameras for a total recording solution of 6 cameras (32Mbps total recording throughput).

Key features

  • The first VMS on the edge, Its serverless setup significantly reduces energy consumption and total cost of ownership
  • Truly edge based recording solution with embedded SSD storage, pre-installed WAVE VMS and 1-Channel VMS License
  • Features WAVE VMS, providing a simple, yet powerful and intuitive user experience for anyone
  • Powerful hardware means SolidEdge is capable of recording up to 5 additional cameras for a total recording solution of 6-cameras
  • Flexible architecture, SolidEdge can be offline standalone or cloud managed and form part of a larger WAVE VMS system
  • Free Cloud Video Management with WAVE sync, no need for occurring cloud subscription costs
  • Go Mobile, view SolidEdge system through WAVE Mobile app, available on android or apple
  • Easy and secure remote access, Free WAVE sync Cloud Video Management negates need for complex IT and Network Firewall setups
  • Powerful hardware means SolidEdge is capable of recording up to 5-additional cameras for a total recording solution of 6 cameras (32 Mbps total recording throughput)
  • Embedded Solid State Drive (SSD) 1T (PNV-A6081R-E1T) and 2T (PNV-A6081R-E2T) with WAVE VMS pre-loaded

If you are matching this to an existing installation, work from the PNV-A6081R-E1T part number rather than the description.

£ 1,709 13
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,709.13 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNV-A6081R-E1T
Product Series
P
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
104.0°
Field of View (Vertical)
55.00°
Lens Type
Varifocal
Maximum Aperture
f/1.3
Maximum Frame Rate
120fps
Minimum Focal Length
4.40mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
2.0x
Storage Capacity
1TB
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
40.00m
Certifications
Ingress protection
IP66, IP67, IP6K9K
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.38-9.33mm
Lens Included
Yes
Maximum Focal Length
9.33mm
Minimum Aperture
f/2.15
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Dome
Height
130.00mm
Weight
1.90kg
Power description
Input Voltage
12V DC
Product information
Diameter
180.00mm
Mount Type
Pendant Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SSD
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
UL
Features
Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Tamper Detection, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Package Contents
2MP Camera with built-in 1TB Rugged SSD SSD 1TB
Attributes
Input Voltage
12V DC
Package Contents
2MP Camera with built-in 1TB Rugged SSD SSD 1TB
Weight
1.90kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number PNV-A6081R-E1T
Product Series P
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 104.0°
Field of View (Vertical) 55.00°
Lens Type Varifocal
Maximum Aperture f/1.3
Maximum Frame Rate 120fps
Minimum Focal Length 4.40mm
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Optical Zoom 2.0x
Storage Capacity 1TB
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 40.00m

Certifications

Ingress protection IP66, IP67, IP6K9K

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4.38-9.33mm
Lens Included Yes
Maximum Focal Length 9.33mm
Minimum Aperture f/2.15

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Vandal Resistant
Form Factor Dome
Height 130.00mm
Weight 1.90kg

Power description

Input Voltage 12V DC

Product information

Diameter 180.00mm
Mount Type Pendant Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SSD

Video

Analog Video Signal Format CVBS (Composite Video Baseband Signal)
Maximum Resolution 1280 x 720

Miscellaneous

Environmental certification UL
Features Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Tamper Detection, White Balance, Wide Dynamic Range
Impact protection IK10
Indoor or outdoor use Outdoor
Package Contents 2MP Camera with built-in 1TB Rugged SSD SSD 1TB

Attributes

Input Voltage 12V DC
Package Contents 2MP Camera with built-in 1TB Rugged SSD SSD 1TB
Weight 1.90kg

Hanwha Vision PNV-A6081R-E1T camera

Hanwha Vision PNV-A6081R-E1T camera, 2MP

Who this is for

For the installer — this is the camera supplied under Hanwha Vision part number PNV-A6081R-E1T. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a camera made by Hanwha Vision. The part number PNV-A6081R-E1T is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact camera I have been quoted? Check the manufacturer part number PNV-A6081R-E1T against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PNV-A6081R-E1T answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
