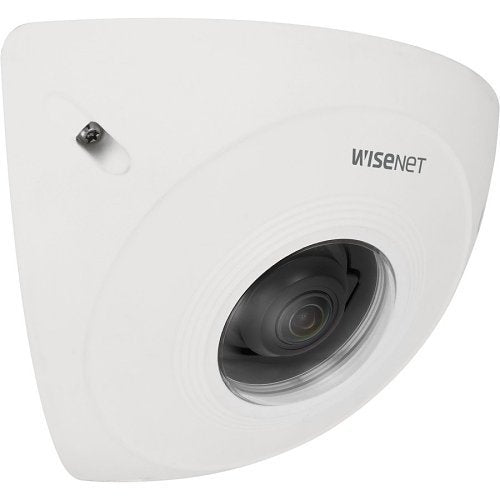

Hanwha Vision TNV-8011C corner IP camera, 5MP
Free Delivery
£
627
90
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNV-8011C is a corner IP camera from the T range.
The TNV-8011C from Samsung is a 5 megapixel outdoor vandal corner camera with 2.3mm lens.
Key features
- Network camera - Helps achieve high-quality video results
- 5MP (2592 x 1944) resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
£
627
90
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNV-8011C
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
131.0°
Field of View (Vertical)
93.40°
Lens Type
Fixed
Maximum Aperture
f/2.3
Maximum Frame Rate
30fps
Minimum Focal Length
2.30mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
CVBS (Composite)
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66, IP6K9K
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0200lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.3mm
Lens Included
Yes
Maximum Focal Length
2.30mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Depth
78.80mm
Durability
Vandal Resistant
Form Factor
Dome
Height
165.00mm
Weight
830.00g
Width
170.00mm
Product information
Mount Type
Corner Mount
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Microphone In, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
830.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNV-8011C |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 131.0° |
| Field of View (Vertical) | 93.40° |
| Lens Type | Fixed |
| Maximum Aperture | f/2.3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.30mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | CVBS (Composite) |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP6K9K |
|---|
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0200lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.3mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.30mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 78.80mm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 165.00mm |
| Weight | 830.00g |
| Width | 170.00mm |
Product information
| Mount Type | Corner Mount |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Microphone In, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 830.00g |
|---|
Hanwha Vision TNV-8011C corner IP camera, 5MP
