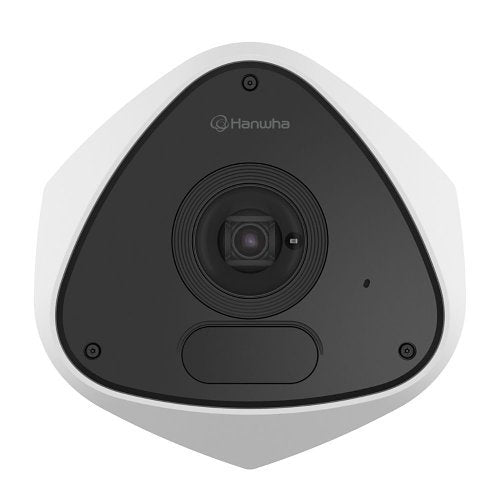

Hanwha Vision TNV-C7013RC corner mount camera, 3MP
Free Delivery
£
1,023
96
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNV-C7013RC is a corner mount camera from the T range.
Discover the advanced surveillance capabilities of the Hanwha TNV-C7013RC/VEX 3MP Corner Mount Camera. Equipped with a 2.39mm fixed lens, this camera delivers crystal-clear 3MP resolution. Its wide angular field of view covers 128° horizontally and 100° vertically, ensuring comprehensive coverage.
Designed with safety in mind, it features an anti-ligature design ideal for corrections and mental health facilities. Storage is ample with a MicroSD slot supporting up to 1TB. Enhanced with Wise IR technology, it provides up to 15m of invisible infrared coverage.
Additionally, it boasts AI-driven analytics for precise object detection and activity monitoring.
Key features
- Maximum 3MP (2048x1536) resolution
- Angular Field of View; Horizontal 128°, Vertical 100°
- Built-in 2.39mm fixed focal lens
- Anti-ligature design for corrections and mental health facilities
- MicroSD/SDHC/SDXC memory slot (1TB)
- Wise IR 15m (49.21'), invisible 940mm wavelength
- Classified object type; Person, face, vehicle, license plate
- Clothes color detection (Orange, Black, Red, at 400lux)
- Analytics events based on AI engine, Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- IR Viewable Length: Wise IR 15m (49.21ft), invisible 940mm wavelength
£
1,023
96
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNV-C7013RC
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
3MP
Field of View
Horizontal, Vertical
Field of View (Horizontal)
128.0°
Field of View (Vertical)
100.00°
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
2.39mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
Ingress protection
IP66, IP69
Display & graphics
Maximum video resolution
2048 x 1536
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0400lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.39mm
Lens Included
Yes
Maximum Focal Length
2.39mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
198.60mm
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
104.80mm
Weight
1.94kg
Width
198.30mm
Product information
Mount Type
Corner Mount
Storage
Recording Formats
H.264
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
+, CE, IEC/EN 60529, IEC/EN 62262, IEC/EN 63000, ISO 20653, NEMA 250 Type 4X
Features
Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Weight
1.94kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNV-C7013RC |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 3MP |
| Field of View | Horizontal, Vertical |
| Field of View (Horizontal) | 128.0° |
| Field of View (Vertical) | 100.00° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.39mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| Ingress protection | IP66, IP69 |
|---|
Display & graphics
| Maximum video resolution | 2048 x 1536 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0400lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.39mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.39mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 198.60mm |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Height | 104.80mm |
| Weight | 1.94kg |
| Width | 198.30mm |
Product information
| Mount Type | Corner Mount |
|---|
Storage
| Recording Formats | H.264 |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | +, CE, IEC/EN 60529, IEC/EN 62262, IEC/EN 63000, ISO 20653, NEMA 250 Type 4X |
|---|---|
| Features | Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Weight | 1.94kg |
Hanwha Vision TNV-C7013RC corner mount camera, 3MP
