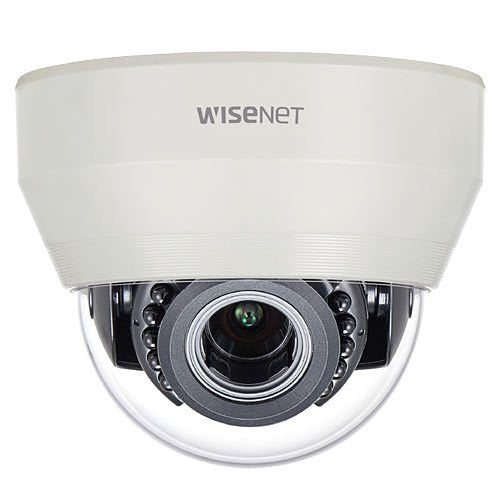

Hanwha Vision HCD-6070R dome camera, 2MP
Free Delivery
£
158
01
(Incl. VAT)
About this product
Hanwha Vision HCD-6070R is a dome camera from the HD+ range.
The Hanwha Vision HCD-6070R is a cost-effective analog camera offering high-definition video surveillance. It captures clear 1080p footage in most lighting conditions, with a decent low-light performance of 0.11 Lux. The camera features a varifocal lens that lets you adjust the viewing angle during installation for optimal coverage.
This dome camera is user-friendly and boasts easy installation with plug-and-play functionality. It also offers dual power options for increased flexibility. While lacking the advanced features of newer network cameras, the HCD-6070R is a solid choice for basic security monitoring applications where affordability and ease of use are priorities.
Key features
- Full HD resolution
- 0.11 Luxat F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IR viewable length 20m
- Transmission distance max.500m
- Easy Installation (Plug & play), Dual power
£
158
01
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
HCD-6070R
Product Series
HD+
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
110.2°
Field of View (Vertical)
55.40°
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.0x
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Lens
Focal Length
3.2-10mm
Lens Included
Yes
Maximum Focal Length
10.00mm
Network & communication
Remote Management
No
Physical characteristics
Colour
White
Durability
Vandal Resistant, Weather Resistant
Form Factor
Dome
Height
98.50mm
Weight
320.00g
Width
119.80mm
Power description
Input Voltage
12V DC
Power Source
DC Power
Product information
Diameter
119.80mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount
Video
Analog Video Signal Format
AHD, CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC
Power Source
DC Power
Weight
320.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | HCD-6070R |
| Product Series | HD+ |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 110.2° |
| Field of View (Vertical) | 55.40° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Lens
| Focal Length | 3.2-10mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
Network & communication
| Remote Management | No |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant, Weather Resistant |
| Form Factor | Dome |
| Height | 98.50mm |
| Weight | 320.00g |
| Width | 119.80mm |
Power description
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power |
Product information
| Diameter | 119.80mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount |
Video
| Analog Video Signal Format | AHD, CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power |
| Weight | 320.00g |
