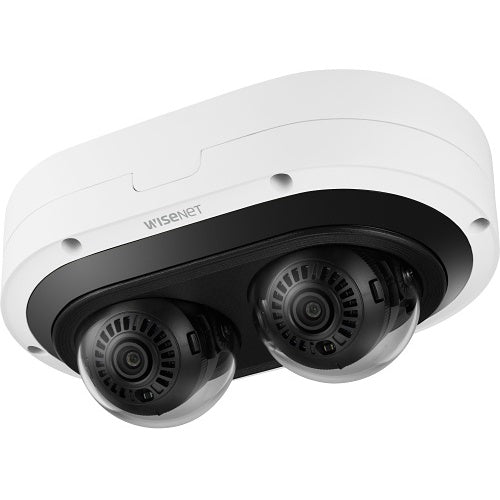

Hanwha Vision PNM-12082RVD dome camera, 6MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision PNM-12082RVD is a dome camera from the P range.
The PNM-12082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 6MP X 2 sensors, each at 15fps with a 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover.
License-free intelligent video analytics include: Virtual line/direction, Enter/Exit, Appear/Disappear, Loitering, intrusion, Defocus detection, Motion detection, Tampering. Audio detection, Sound classification (with optional I/O Box). FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10.
Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
Key features
- For remote surveillance needs, this network camera is best suited
- Up to 25m of night vision
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 3328 x 1872 video resolution
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | PNM-12082RVD |
| Product Series | P |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 6MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 96.0° |
| Field of View (Vertical) | 51.00° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.67 |
| Maximum Frame Rate | 15fps |
| Minimum Focal Length | 3.50mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66, IP67 |
Display & graphics
| Number of Sensors | 2 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.4-6.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.69mm |
| Minimum Aperture | f/2.64 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 135.00mm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 93.20mm |
| Weight | 1.33kg |
| Width | 215.00mm |
Product information
| Mount Type | Corner Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 1.33kg |
|---|
