Hanwha Vision QND-8020R dome camera, 5MP
Free Delivery
£
234
60
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)

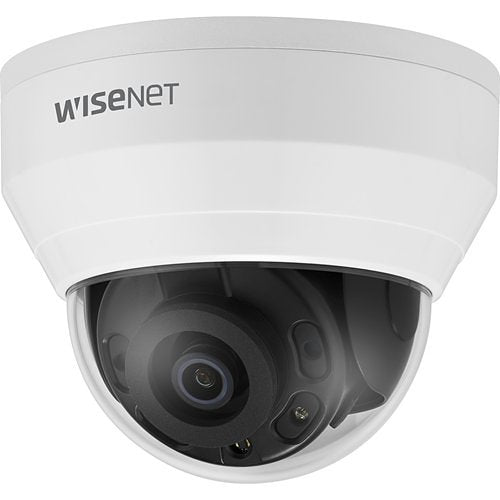

Hanwha Vision QND-8020R is a dome camera from the Q range.
1/2.8" 5 MP CMOS sensor with 2592 x 1944 resolution, max. 30 fps @5 MP, multi-stream H.264/H.265/MJPEG with WiseStreamII support, analysis: tampering and defocus detection, line override, 4-zone motion detection, 6-zone privacy masking, optional microSD(HC/XC) card slot for up to 128 GB, corridor view, BLC/SSDR, LDC (lens distortion correction), 1 alarm input and 1 output, PoE (IEEE802, 3af), compact dimensions: diameter 110.6 x 89.5 mm
Key features
- Max. 5MP (2592 x 1944) resolution
- 4mm fixed lens
- 0.15Lux (Colour), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m, PoE
£
234
60
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QND-8020R
Product Series
Q
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-10°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4mm
Lens Included
Yes
Maximum Focal Length
4.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Form Factor
Dome
Height
86.00mm
Weight
360.00g
Power description
Input Voltage
PoE
Product information
Diameter
110.00mm
Mount Type
Corner Mount, Gang Box Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Mechanical ICR, Day/Night, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Attributes
Indoor or outdoor use
Indoor
Input Voltage
PoE
Weight
360.00g
