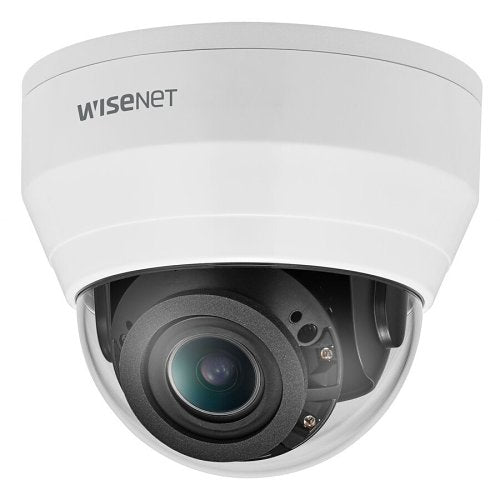

Hanwha Vision QND-8080R dome camera, 5MP
About this product
Hanwha Vision QND-8080R is a dome camera from the Q range.
The Hanwha Vision QND-8080R is a high-resolution network camera ideal for indoor and outdoor surveillance applications. This 5-megapixel camera delivers exceptional image clarity, capturing detailed footage at a resolution of 2592 x 1944 pixels. It boasts a motorized varifocal lens (3.2-10mm zoom) that allows you to adjust the viewing angle remotely during installation or while monitoring, ensuring optimal coverage of your space.
The QND-8080R is adept at handling various lighting conditions. It performs well in color lighting with a low light sensitivity of 0.15Lux, and excels in complete darkness with its built-in infrared LEDs. This versatile dome camera offers a range of features to enhance security monitoring.
It incorporates basic video analytics like motion detection, tampering detection, and defocus detection to alert you of potential security breaches. Additionally, the camera supports Wide Dynamic Range (WDR) to provide clear visuals in scenes with contrasting light levels. For flexible storage options, the QND-8080R features a microSD card slot, and its Power over Ethernet (PoE) capability allows for simplified installation with a single cable for both power and data transmission.
The Hanwha Vision QND-8080R is a feature-rich camera offering excellent value for various security needs. Its high-resolution video with remote zoom control, basic video analytics, and weatherproof design make it a well-rounded solution for comprehensive indoor and outdoor surveillance applications.
Key features
- Max. 5MP (2592 x 1944) resolution
- 3.2~10mm(3.1x) motorised varifocal lens
- 0.15Lux (Colour), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m, PoE
Specifications
Technical information
Camera
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QND-8080R |
| Product Series | Q |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
| Minimum Aperture | f/2.9 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Weatherproof |
| Form Factor | Dome |
| Height | 102.00mm |
| Weight | 430.00g |
Product information
| Diameter | 120.30mm |
|---|---|
| Mount Type | Corner Mount, Gang Box Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Auto Gain Control, Automatic White Balance, Built-in IR LED, Day/Night, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|
Attributes
| Indoor or outdoor use | Indoor |
|---|---|
| Weight | 430.00g |
