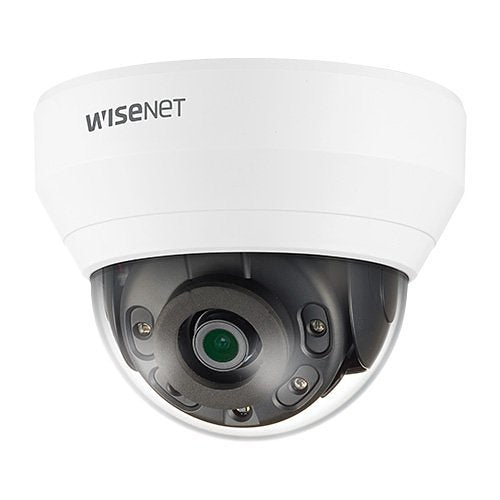

Hanwha Vision QNV-6012R1 dome camera, 2MP
Free Delivery
£
193
20
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision QNV-6012R1 is a dome camera from the Q range.
multiple streams in H.264, H.265 and M-JPEG compression, built-in motion detection (directional), line pass, tampering and image sharpness detection, area in/out, micro-SD slot (max. 128 GB), built-in infrared illumination up to max. 20 m, Hallway view, 2.8 mm fix lens with LDC (Lens Distortion Correction) and hor. aperture angle.
113.7° , 1/2.8 inch CMOS progressive scan sensor, sensitivity 0.1 lux in color and 0 lux in B/W (with IR), mechanical day/night function (TDN), backlight and WDR 120 dB compensation, SSNR (noise suppression), private masking, 1 alarm input/1 output, WiseStream II support for limited bandwidth use, Onvif, use of various Web browsers, outdoor and vandal-proof IP66/IK10 model
Key features
- For remote surveillance needs, this network camera is best suited
- Provides night vision of objects at a distance of up to 20 m
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 1920 x 1080 resolution for surveillance in real-time
£
193
20
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNV-6012R1
Product Series
Q
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Vertical)
61.50°
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Dome
Weight
510.00g
Power description
Input Voltage
12V DC
Product information
Diameter
120.30mm
Mount Type
Ceiling Mount, Corner Mount, Junction Box Mount, Parapet Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC
Weight
510.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNV-6012R1 |
| Product Series | Q |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Vertical) | 61.50° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Weight | 510.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 120.30mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Junction Box Mount, Parapet Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 510.00g |
Hanwha Vision QNV-6012R1 dome camera, 2MP
