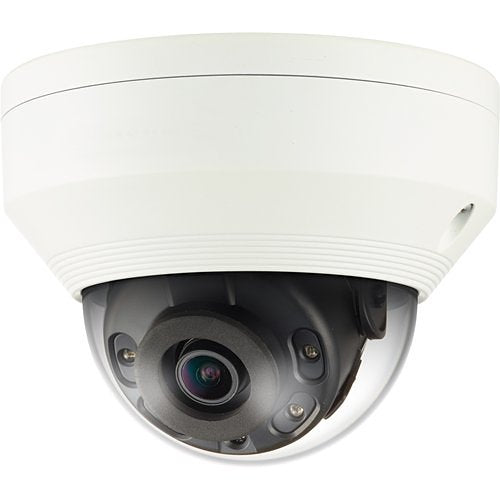

Hanwha Vision QNV-6022R dome camera, 2MP

Free Delivery
£ 213 21
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision QNV-6022R is a dome camera from the Q range.

multiple streams in H.264, H.265 and M-JPEG compression, integrated motion detection (directional), line override, tampering and image sharpness detection, zone in/out, micro-SD slot (max. 128 GB), integrated infrared illumination up to 25 meters max, Hallway view, 4 mm fix lens with LDC (Lens Distortion Correction) and hor. aperture angle 87.6° , 1/2.8 inch CMOS progressive scan sensor, sensitivity 0.1 lux in color and 0 lux in B/W (with IR), mechanical day/night function (TDN), backlight and WDR 120 dB compensation, SSNR (noise suppression), private masking, 1 alarm input/1 output, WiseStream II support for limited bandwidth use, unidirectional audio (line/mic input), Onvif, use of various Web browsers, outdoor and vandal-proof IP66/IK10 model.

Key features

  • Max. 2MP (1920 x 1080) resolution
  • 0.1Lux (Color), 0Lux (B/W, IR LED on)
  • 4mm fixed lens
  • Max. 30fps@2M all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • Hallway view (90˚/270˚), LDC support
  • Micro SD/SDHC/SDXC memory slot (Max. 128GB)
  • IR viewable length 20m/25m/30m
  • IP66, IK10, PoE, 12VDC

If you are matching this to an existing installation, work from the QNV-6022R part number rather than the description.

£ 213 21
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£213.21 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNV-6022R
Product Series
Q
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4mm
Lens Included
Yes
Maximum Focal Length
4.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
91.70mm
Weight
510.00g
Power description
Input Voltage
12V DC, PoE
Product information
Diameter
120.30mm
Mount Type
Ceiling Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC, PoE
Weight
510.00g

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number QNV-6022R
Product Series Q
Product Type Dome Cameras

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 4.00mm
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 25.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -30°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4.00mm

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Height 91.70mm
Weight 510.00g

Power description

Input Voltage 12V DC, PoE

Product information

Diameter 120.30mm
Mount Type Ceiling Mount, Wall Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Video

Analog Video Signal Format CVBS (Composite Video Baseband Signal)

Miscellaneous

Impact protection IK10

Attributes

Indoor or outdoor use Outdoor
Input Voltage 12V DC, PoE
Weight 510.00g

Hanwha Vision QNV-6022R dome camera

Hanwha Vision QNV-6022R dome camera, 2MP

Who this is for

For the installer — this is the dome camera supplied under Hanwha Vision part number QNV-6022R. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a dome camera made by Hanwha Vision. The part number QNV-6022R is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact dome camera I have been quoted? Check the manufacturer part number QNV-6022R against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against QNV-6022R answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
