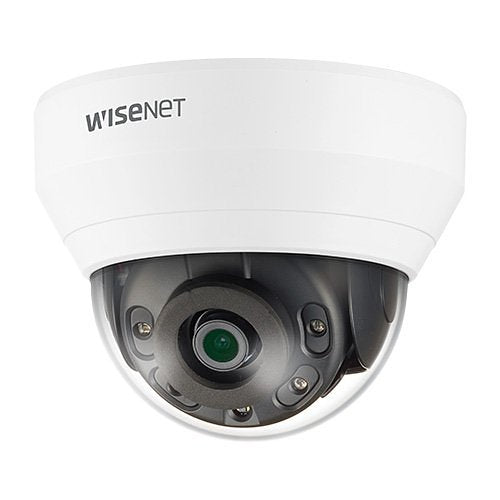

Hanwha Vision QNV-6022R1 dome camera, 2MP
Free Delivery
£
155
36
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision QNV-6022R1 is a dome camera from the Q range.
The QNV-6022R1 from Samsung is a 2 megapixel outdoor network IR vandal resistant dome camera with 4mm lens with 4mm lens.
Key features
- For remote surveillance needs, this network camera is best suited
- Up to 25m of night vision
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
£
155
36
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNV-6022R1
Product Series
Q
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
87.6°
Field of View (Vertical)
46.40°
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4mm
Lens Included
Yes
Maximum Focal Length
4.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Dome
Height
91.70mm
Weight
510.00g
Power description
Input Voltage
12V DC
Product information
Diameter
120.30mm
Mount Type
Backbox Mount, Ceiling Mount, Corner Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
510.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNV-6022R1 |
| Product Series | Q |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 87.6° |
| Field of View (Vertical) | 46.40° |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 4.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 91.70mm |
| Weight | 510.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 120.30mm |
|---|---|
| Mount Type | Backbox Mount, Ceiling Mount, Corner Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 510.00g |
