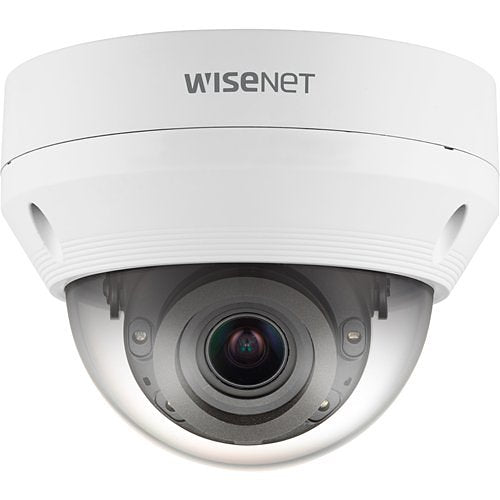

Hanwha Vision QNV-6082R dome camera, 2MP
About this product
Hanwha Vision QNV-6082R is a dome camera from the Q range.
The Hanwha Vision QNV-6082R is a cost-effective 2MP network camera designed for reliable surveillance. It delivers clear 1080p video footage in both well-lit and low-light environments, thanks to its built-in infrared LEDs and light sensitivity of 0.03Lux. The camera features a varifocal lens that allows you to adjust the viewing angle during installation for optimal coverage of your space.
This dome camera is versatile and user-friendly. It supports multiple video codecs for efficient storage and transmission, and allows for setting up different video streams for various needs. The QNV-6082R incorporates basic video analytics like motion detection and tamper detection to alert you of potential security breaches.
It also boasts innovative features like hallway view mode for narrow spaces and lens distortion correction for accurate image representation. For flexible storage options, the camera includes a microSD card slot, and its weatherproof (IP66) and vandal-resistant (IK10) build ensures reliable operation outdoors.
Key features
- Max. 2MP (1920 x 1080) resolution
- 0.03Lux (Colour), 0Lux (B/W, IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Max. 30fps@2M all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90˚/270˚), LDC support
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IR viewable length 30m
- IP66, IK10, PoE/12VDC
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNV-6082R |
| Product Series | Q |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 109.0° |
| Field of View (Vertical) | 57.40° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
| Minimum Aperture | f/2.9 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Weatherproof |
| Form Factor | Dome |
| Height | 106.10mm |
| Weight | 710.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 137.00mm |
|---|---|
| Mount Type | Ceiling Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | microSD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 710.00g |
