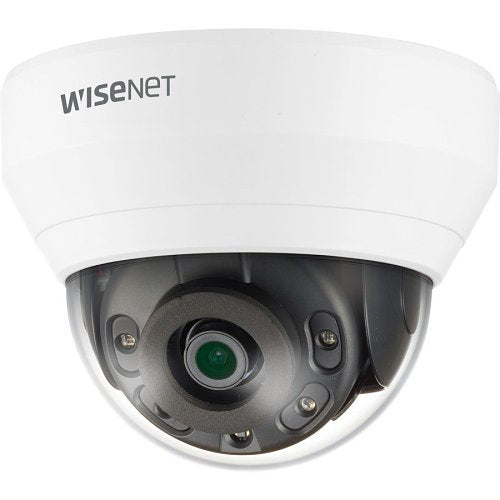

Hanwha Vision QNV-7012R dome camera, 4MP
About this product
Hanwha Vision QNV-7012R is a dome camera from the Q range.
The Hanwha Vision QNV-7012R is a robust security camera designed for outdoor monitoring. This 4MP network camera captures crisp, high-resolution footage at 30 frames per second. Its built-in 2.8mm fixed lens delivers a wide field of view, ideal for general surveillance.
The QNV-7012R is built to withstand harsh environments. It boasts a weatherproof (IP66) rating and vandal-resistant (IK10) construction, making it suitable for outdoor use. Furthermore, the QNV-7012R is packed with features to enhance your security monitoring.
It comes equipped with day/night mode and wide dynamic range (WDR) for clear visuals in all lighting conditions. Intelligent analytics like motion detection, defocus detection, and directional detection ensure you're alerted to potential security breaches. This camera also supports multiple video codecs for efficient storage and transmission, and features a microSD card slot for local recording if needed.
Additionally, the QNV-7012R boasts innovative features like Hallway view mode for narrow spaces and Lens Distortion Correction for accurate image representation. Overall, the Hanwha Vision QNV-7012R is a versatile and reliable camera solution for various outdoor security applications. Its high-resolution video, advanced features, and durable design make it a valuable asset for any security system.
Key features
- 4MP resolution
- Built-in 2.8mm fixed lens
- 30fpsat 4MP
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m, IP66, IK10
- Hallway view support, WiseStream II
- LDC support (Lens Distortion Correction)
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNV-7012R |
| Product Series | Q |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 107.5° |
| Field of View (Vertical) | 59.70° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Weatherproof |
| Form Factor | Dome |
| Weight | 510.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 120.30mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 510.00g |
