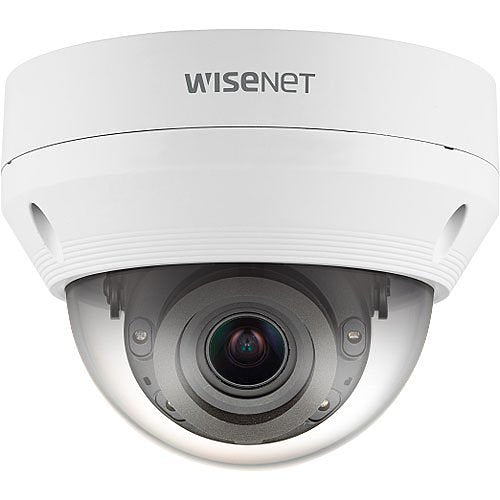

Hanwha Vision QNV-7082R dome camera, 4MP
Free Delivery
£
364
32
(Incl. VAT)
About this product
Hanwha Vision QNV-7082R is a dome camera from the Q range.
Hanwha QNV-7082R Q Series is ideal for exposed outdoor areas requiring high-definition 24-hour monitoring, this vandal-resistant dome offers up to 30m IR illumination, WDR technology and free remote access via Wisenet Viewer application.
Key features
- Max. 4MP resolution, Up to 30fps
- Colour : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.2 ~ 10mm (3.1x) motorised varifocal
- IR viewable length: 30m (98.42ft)
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Motion detection, Tampering, Defocus detection
- Hallway view (90°/270°), LDC support
- Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
- IP66, IK10
£
364
32
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNV-7082R
Product Series
Q
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Vertical)
30.80°
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.2-10mm
Lens Included
Yes
Maximum Focal Length
10.00mm
Minimum Aperture
f/2.9
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Dome
Height
106.10mm
Weight
710.00g
Power description
Input Voltage
12V DC
Product information
Diameter
137.00mm
Mount Type
Ceiling Mount, Corner Mount, Flush Mount, Junction Box Mount, Parapet Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Audio Compression, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC
Weight
710.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNV-7082R |
| Product Series | Q |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Vertical) | 30.80° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
| Minimum Aperture | f/2.9 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 106.10mm |
| Weight | 710.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 137.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Flush Mount, Junction Box Mount, Parapet Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 710.00g |
Hanwha Vision QNV-7082R dome camera, 4MP
