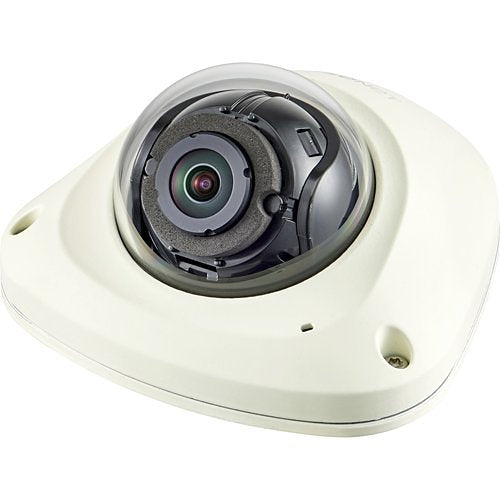

Hanwha Vision XNV-6022R dome camera, 2MP
Free Delivery
£
442
98
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNV-6022R is a dome camera from the X range.
H.265/H.264/MJPEG, light sensitivity 0.04 lux color and 0 lux B/W (infrared enabled), built-in video analytics: tampering, loitering, directional motion detection, defocusing and fog detection, line passing, area in/out, audio detection, digital AutoTracking, Handover, SD(HC/XC) slot for optional cards up to 256 GB, vandal-resistant for outdoor use IP66/IK10, Hallway View and LDC, 1/2.8, private masking, PoE (6.7 Watt max.)
Key features
- Max. 2MP (1920 x 1080) resolution
- Max. 60fpsat all resolutions (H.265 / H.264)
- 0.04Luxat F2.0 (Color), 0Lux (B/W : IR LED On)
- Built-in 3.6mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB)
- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Digital auto tracking, Sound classification, Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 256GB)
- IR viewable length 15m, IP66, IK10, NEMA4X
- Hallway view, PoE, LDC support
£
442
98
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNV-6022R
Product Series
X
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
60fps
Minimum Focal Length
3.60mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0040lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.6mm
Lens Included
Yes
Maximum Focal Length
3.60mm
Minimum Aperture
f/2
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
100.00mm
Durability
Vandal Resistant
Form Factor
Dome
Height
52.00mm
Weight
295.00g
Width
98.90mm
Power description
Input Voltage
2.5V DC
Product information
Mount Type
Pole Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Audio Compression, Auto Tracking, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
2.5V DC
Weight
295.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNV-6022R |
| Product Series | X |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3.60mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0040lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.60mm |
| Minimum Aperture | f/2 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 100.00mm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 52.00mm |
| Weight | 295.00g |
| Width | 98.90mm |
Power description
| Input Voltage | 2.5V DC |
|---|
Product information
| Mount Type | Pole Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Audio Compression, Auto Tracking, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 2.5V DC |
|---|---|
| Weight | 295.00g |
