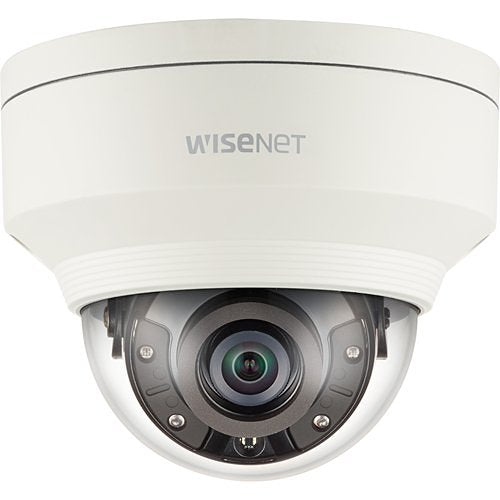

Hanwha Vision XNV-8020R dome camera, 5MP
Free Delivery
£
500
25
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNV-8020R is a dome camera from the X range.
The Wisenet X series is unique in the industry with its incomparable image quality, 1/1.8 inch CMOS sensor, TDN with sensitivity of 0.16 lux in color and 0 lux in B/W (integrated IR lighting), triple codec H.264/H.265/MJPEG codec, image analysis including: defog, loitering, direction detection, audio detection with classification, digital AutoTracking, motion detection with handover function, heatmapping, people counting, queue management, 2 x SD(HC/XC) for internal recording media up to 512 GB, Hallway View, LDC (Lens Distortion Correction), bi-directional audio support, USB connection, BLC/HLC
Key features
- Built-in 3.7mm fixed lens
- Max. 30fpsat all resolutions (H.265/H.264)
- Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
£
500
25
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNV-8020R
Product Series
X
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
3.70mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
2560 x 1920
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.7mm
Lens Included
Yes
Maximum Focal Length
3.70mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Dome
Height
97.50mm
Weight
615.00g
Width
120.00mm
Power description
Input Voltage
12V DC
Product information
Diameter
120.00mm
Mount Type
Corner Mount, Parapet Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
HDD, Network Attached Storage (NAS), SD Card, SSD
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
615.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNV-8020R |
| Product Series | X |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.70mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1920 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.7mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.70mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 97.50mm |
| Weight | 615.00g |
| Width | 120.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 120.00mm |
|---|---|
| Mount Type | Corner Mount, Parapet Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | HDD, Network Attached Storage (NAS), SD Card, SSD |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 615.00g |
