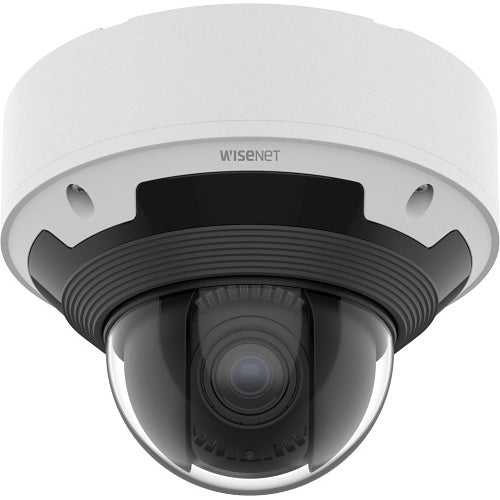

Hanwha Vision XNV-9083RZ dome camera, 8MP

Free Delivery
£ 1,246 14
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision XNV-9083RZ is a dome camera from the X range.

The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals.

Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events.

Also it can be reducing false alarm when operators were monitoring scene.WiseNR II is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.By utilizing the results of AI-based object detection, WiseStream III technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.

Key features

  • 8MP resolution
  • 4.4~9.3mm (2.1x) motorized varifocal
  • Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • Maximum 30 fps (H.265/H.264)
  • IR viewable length: 15m (49.21ft), 30m(98.43ft) based on scene
  • Day & Night (ICR), extremeWDR (120 dB)
  • Hard-coated dome bubble
  • WiseNR II (Based on AI engine), WiseStream III (Based on AI engine)
  • Analytics events based on AI engine (NPU): Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear

If you are matching this to an existing installation, work from the XNV-9083RZ part number rather than the description.

£ 1,246 14
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,246.14 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNV-9083RZ
Product Series
X
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
113.0°
Field of View (Vertical)
58.00°
Lens Type
Varifocal
Maximum Aperture
f/1.3
Maximum Frame Rate
30fps
Minimum Focal Length
4.40mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0030lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.4-9.3mm
Lens Included
Yes
Maximum Focal Length
3.60mm
Minimum Aperture
f/2.15
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Weight
2.00kg
Product information
Diameter
180.00mm
Mount Type
Pendant Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
2.00kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number XNV-9083RZ
Product Series X
Product Type Dome Cameras

Technical information

Connectivity Technology Wired
Effective resolution 8MP
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 113.0°
Field of View (Vertical) 58.00°
Lens Type Varifocal
Maximum Aperture f/1.3
Maximum Frame Rate 30fps
Minimum Focal Length 4.40mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 2.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 15.00m

Certifications

Ingress protection IP66, IP67

Display & graphics

Maximum video resolution 3840 x 2160

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0030lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4.4-9.3mm
Lens Included Yes
Maximum Focal Length 3.60mm
Minimum Aperture f/2.15

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Weight 2.00kg

Product information

Diameter 180.00mm
Mount Type Pendant Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Weight 2.00kg

Hanwha Vision XNV-9083RZ dome camera

Hanwha Vision XNV-9083RZ dome camera, 8MP

Who this is for

For the installer — this is the dome camera supplied under Hanwha Vision part number XNV-9083RZ. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a dome camera made by Hanwha Vision. The part number XNV-9083RZ is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact dome camera I have been quoted? Check the manufacturer part number XNV-9083RZ against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against XNV-9083RZ answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
