Hanwha Vision ANV-L6023R flateye dome camera, 2MP
Free Delivery
£
178
02
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)

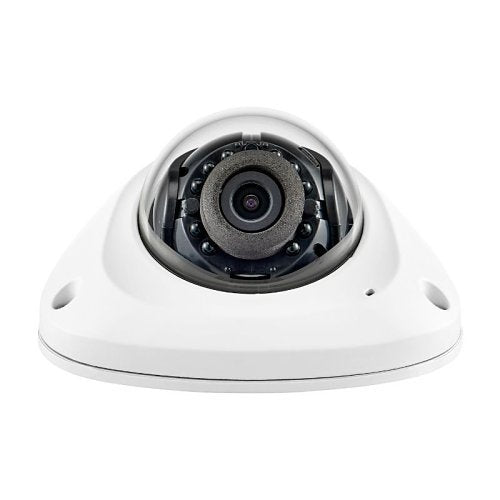

Hanwha Vision ANV-L6023R is a flateye dome camera from the A range.
The A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Being affordable without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
Key features
- 2MP (1920 x 1080) Resolution
- 3.6mm Lens with 94.8° HFoV
- 30fps At all resolutions (H.265/H.264)
- H.265/H.264, MJPEG Codec supported, Multiple streaming
- Day and Night (ICR), WDR (120 dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR Viewable length 15m
- IP66, IK10, NEMA4X Support
£
178
02
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
ANV-L6023R
Product Series
A
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
94.8°
Field of View (Vertical)
49.30°
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
3.60mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
CVBS (Composite)
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.6mm
Lens Included
Yes
Maximum Focal Length
3.60mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
100.00mm
Durability
Vandal Resistant
Form Factor
Dome
Height
52.00mm
Weight
295.00g
Product information
Diameter
98.90mm
Mount Type
Desktop Mount, Rack Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
295.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | ANV-L6023R |
| Product Series | A |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 94.8° |
| Field of View (Vertical) | 49.30° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.60mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | CVBS (Composite) |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.60mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 100.00mm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 52.00mm |
| Weight | 295.00g |
Product information
| Diameter | 98.90mm |
|---|---|
| Mount Type | Desktop Mount, Rack Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 295.00g |
|---|
