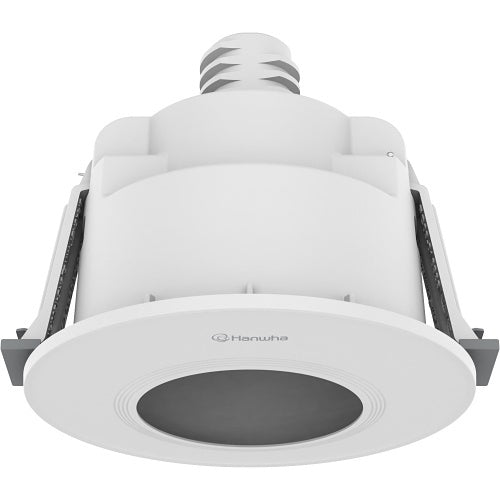

Hanwha Vision SHD-1200FW in-ceiling mount, White
£
47
61
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
The Hanwha Vision SHD-1200FW is an in-ceiling mount, and its supported products are the QNV-C8013R/C8023R. It is white (RAL9003) polycarbonate; its ceiling hole size is ø140 mm and its tile thickness is 10 to 60 mm.
Key features
- In-ceiling mount; supported products QNV-C8013R/C8023R
- Ceiling hole size ø140 mm
- Tile thickness 10 to 60 mm
- Max. load 0.6 kg; maximum load of ceiling board 3 kg
- PC (polycarbonate), white, RAL9003
- 175 x 162 x 147 mm; 275 g
Frequently asked questions
Which products does the SHD-1200FW support?
Hanwha Vision lists its supported products as the QNV-C8013R/C8023R.
What is the ceiling hole size?
ø140 mm.
What is the tile thickness?
10 to 60 mm.
What load does it carry?
The max. load is 0.6 kg; the maximum load of ceiling board is 3 kg.
What is it made of?
PC (polycarbonate), in white (RAL9003).
-
Download
- SHD-1200FW — User Manual
£
47
61
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
SHD-1200FW
Product Type
Bracket
Colour
White
Material
PC (Polycarbonate)
RAL Code
RAL9003
Product Dimensions
175 x 162 x 147 mm
Weight
275 g
Ceiling Hole Size
ø140 mm
Tile Thickness
10 - 60 mm
Max. Load
0.6 kg
Maximum Load of Ceiling Board
3 kg
Supported Products
QNV-C8013R/C8023R
Physical characteristics
Colour
White
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | SHD-1200FW |
| Product Type | Bracket |
| Colour | White |
| Material | PC (Polycarbonate) |
| RAL Code | RAL9003 |
| Product Dimensions | 175 x 162 x 147 mm |
| Weight | 275 g |
| Ceiling Hole Size | ø140 mm |
| Tile Thickness | 10 - 60 mm |
| Max. Load | 0.6 kg |
| Maximum Load of Ceiling Board | 3 kg |
| Supported Products | QNV-C8013R/C8023R |
Physical characteristics
| Colour | White |
|---|
