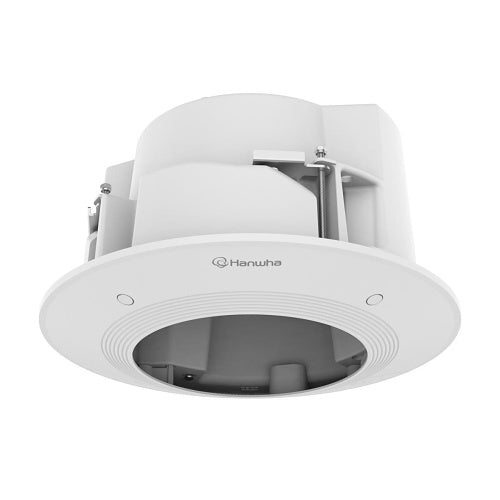

Hanwha Vision SHP-1730FPW in-ceiling mount, White

Visit Camera Mounts & Brackets
£ 113 85
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

The Hanwha Vision SHP-1730FPW is an in-ceiling mount with an aluminium enclosure and a polycarbonate (PC) top cover, in white (RAL9003). Its supported products are the XNP-C7310R and XNP-C9310R, and its max. load is 7 kg.

Key features

  • In-ceiling mount; supported products XNP-C7310R, XNP-C9310R
  • Ceiling hole size ø266 mm; tile thickness 10 to 70 mm
  • Max. load 7 kg; maximum load of ceiling board 15 kg
  • Conduit holes 19.1 mm (3/4") (M25) and 12.7 mm (1/2") (M20)
  • Enclosure aluminium, top cover polycarbonate (PC); white, RAL9003
  • ø311 x 188 mm; 2.45 kg

Frequently asked questions

Which products does the SHP-1730FPW support?

The XNP-C7310R and XNP-C9310R.

What ceiling hole and tile thickness does it need?

A ceiling hole of ø266 mm, in a tile thickness of 10 to 70 mm.

What load does it carry?

The max. load is 7 kg; the maximum load of ceiling board is 15 kg.

What conduit sizes does it take?

19.1 mm (3/4") (M25) and 12.7 mm (1/2") (M20).

What should be checked during installation?

Secure the safety wire, and tighten the 3 fixing screws at the top of the housing securely: if they are not, the camera may be detached from the mount during operation.

£ 113 85
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£113.85 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
SHP-1730FPW
Product Type
Mount
Colour
White
Material
Enclosure: Aluminium / Top Cover: Polycarbonate (PC)
RAL Code
RAL9003
Product Dimensions
ø311 x 188 mm
Weight
2.45 kg
Ceiling Hole Size
ø266 mm
Tile Thickness
10 - 70 mm
Mount Screw Size
TR20, T30
Max. Load
7 kg
Maximum Load of Ceiling Board
15 kg
Conduit Hole
19.1 mm (3/4") (M25) / 12.7 mm (1/2") (M20)
Supported Products
XNP-C7310R, XNP-C9310R
Technical information
Maximum Load Capacity
7.00kg
Physical characteristics
Colour
White
Weight
2.45kg
Attributes
Weight
2.45kg
Specifications
Technical information
Physical characteristics
Attributes

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number SHP-1730FPW
Product Type Mount
Colour White
Material Enclosure: Aluminium / Top Cover: Polycarbonate (PC)
RAL Code RAL9003
Product Dimensions ø311 x 188 mm
Weight 2.45 kg
Ceiling Hole Size ø266 mm
Tile Thickness 10 - 70 mm
Mount Screw Size TR20, T30
Max. Load 7 kg
Maximum Load of Ceiling Board 15 kg
Conduit Hole 19.1 mm (3/4") (M25) / 12.7 mm (1/2") (M20)
Supported Products XNP-C7310R, XNP-C9310R

Technical information

Maximum Load Capacity 7.00kg

Physical characteristics

Colour White
Weight 2.45kg

Attributes

Weight 2.45kg

Hanwha Vision SHP-1730FPW in-ceiling mount

Hanwha Vision SHP-1730FPW in-ceiling mount, White

What it is

The SHP-1730FPW is a Hanwha Vision in-ceiling mount; its supported products are the XNP-C7310R and XNP-C9310R. The enclosure is aluminium and the top cover is polycarbonate (PC), in white with RAL code RAL9003. It measures ø311 x 188 mm and weighs 2.45 kg.

Ceiling, load and cabling

The ceiling hole size is ø266 mm and the tile thickness is 10 to 70 mm. The max. load is 7 kg, and the maximum load of ceiling board is 15 kg.

It has 19.1 mm (3/4") (M25) and 12.7 mm (1/2") (M20) conduit holes, and its mount screw sizes are TR20 and T30.

Installation notes

Secure the safety wire to avoid a product fall. If the 3 fixing screws at the top of the housing are not tightened securely, the camera may be detached from the mount during operation.

Buying this in the UK

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Hanwha Vision SHP-1730FPW in-ceiling mount
Hanwha Vision

Hanwha Vision SHP-1730FPW in-ceiling mount, White

£113.85

Please note: this is a non-returnable item (excluding faulty goods)

The Hanwha Vision SHP-1730FPW is an in-ceiling mount with an aluminium enclosure and a polycarbonate (PC) top cover, in white (RAL9003). Its supported products are the XNP-C7310R and XNP-C9310R, and its max. load is 7 kg.

Key features

Frequently asked questions

Which products does the SHP-1730FPW support?

The XNP-C7310R and XNP-C9310R.

What ceiling hole and tile thickness does it need?

A ceiling hole of ø266 mm, in a tile thickness of 10 to 70 mm.

What load does it carry?

The max. load is 7 kg; the maximum load of ceiling board is 15 kg.

What conduit sizes does it take?

19.1 mm (3/4") (M25) and 12.7 mm (1/2") (M20).

What should be checked during installation?

Secure the safety wire, and tighten the 3 fixing screws at the top of the housing securely: if they are not, the camera may be detached from the mount during operation.
