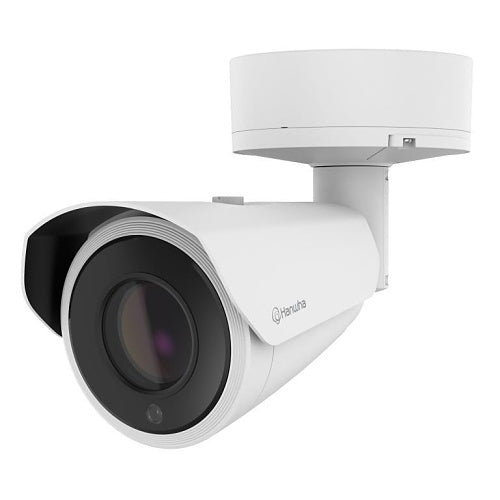

Hanwha Vision PNO-A9311R IP bullet camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision PNO-A9311R is an IP bullet camera from the P range.
Discover the power of advanced surveillance with the Hanwha PNO-A9311R 4K AI IR IP Bullet Camera. Equipped with a 6.91-214.7mm lens and 31x zoom, this camera offers unparalleled clarity and precision. Its high-resolution 3840 x 2160 capability ensures real-time, crystal-clear footage, while the CMOS sensor provides superior HD videos with lower power consumption compared to CCD sensors.
The f/1.36 aperture captures more light, delivering reliable, high-quality results even in low-light conditions. Experience enhanced security with features like night vision up to 70m and 4K recording for exceptional video quality. The P-iris ensures consistent exposure for sharp images.
Perfect for securing your premises, this robust camera is IP66/67 and IK10 rated for outdoor durability.
Key features
- For remote surveillance needs, this network camera is best suited
- Up to 3840 x 2160 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 214.70 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/1.36 maximum aperture for better light absorption and dependable, better-quality results
- 31x optical zoom for desired image clarity and maximum capturing convenience
- Provides night vision of objects at a distance of up to 70 m
- 4K recording format for exceptional video quality with maximum productivity
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- P-iris camera iris provides reliable output with improved quality to ensure maximum productivity
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | PNO-A9311R |
| Product Series | P |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 60.9° |
| Field of View (Vertical) | 35.26° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.36 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6.90mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 1 |
| Optical Zoom | 31.0x |
| Video Formats | H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 High Profile, H.265 Main Profile, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 70.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0750lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6.91-214.7mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 214.70mm |
| Minimum Aperture | f/4.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Weight | 3.20kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 136.20mm |
|---|---|
| Length | 358.70mm |
| Mount Type | Conduit Box Mount, Gang Box Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Environmental certification | UL |
|---|---|
| Environmental status | Yes |
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 3.20kg |
