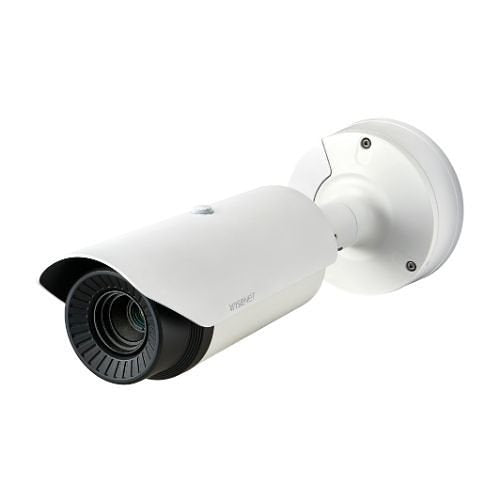

Hanwha Vision TNO-3020T IP bullet camera, 320 x 240
Free Delivery
£
2,484
00
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNO-3020T is an IP bullet camera from the T range.
Thermal cameras are capable of identifying people and vehicles from extremely long distances. Their ability to see in complete darkness and through some visual barriers is also ideal for 24 hour surveillance of areas with critical infrastructure. No- and Low-light monitoring: Easily distinguish people or objects from a complex background, even in no-light conditions.
Temperature change detection analytic: Easily monitor areas and equipment for changes in temperature. Multiple color palettes: Choose from several color palettes for the best contrast. Long range detection: Can detect vehicles at distances of up to 3,157m away.
Key features
- Max. 320 x 240 resolution support
- Built-in 4.7 fixed lens
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)
- Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Temperature detection, Shock detection
- Micro SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStreamII support
- PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
£
2,484
00
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNO-3020T
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
CVBS (Composite)
Camera
Image Sensor Type
Uncooled Microbolometer
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
320 x 240
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.7mm
Lens Included
Yes
Maximum Focal Length
4.70mm
Maximum Thermal Focal Length
4.70mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Bullet
Weight
2.51kg
Power description
Input Voltage
12V DC, 24V AC
Product information
Diameter
147.50mm
Length
375.30mm
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
microSD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC, 24V AC
Weight
2.51kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNO-3020T |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | CVBS (Composite) |
Camera
| Image Sensor Type | Uncooled Microbolometer |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 320 x 240 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.7mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 4.70mm |
| Maximum Thermal Focal Length | 4.70mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Weight | 2.51kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 147.50mm |
|---|---|
| Length | 375.30mm |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | microSD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Weight | 2.51kg |
