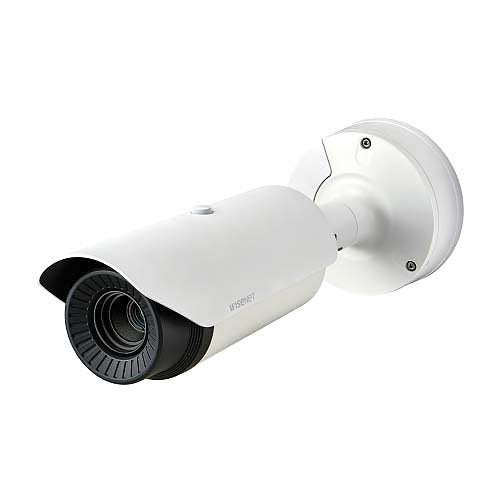

Hanwha Vision TNO-3030T IP bullet camera, 320 x 240
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNO-3030T is an IP bullet camera from the T range.
integrated analysis: directional video motion detection, tampering, loitering, audio detection with sound classification, shock detection, temperature change detection, SD(HC/XC) card slot for optional cards up to 256 GB, Hallway View, vandal-resistant IP66/IK10, analog video output for adjustment, Micro-USB connection, private masking, 1 alarm input and 2 outputs, gyro sensor for digital image stabilization, WiseStream II support
Key features
- Thermal QVGA (320 x 240) resolution
- Built-in 13.7mm fixed lens
- 30 fps at ll resolutions(H.265, H.264, MJPEG)
-
Download
- TNO-3030T — User Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNO-3030T |
| Product Series | T |
| Product Type | Thermal Imaging Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | Microbolometer |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 320 x 240 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.7mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 13.70mm |
| Maximum Thermal Focal Length | 13.70mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Weight | 2.51kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 147.50mm |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection |
|---|
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Weight | 2.51kg |
| Impact protection | IK10 |
Hanwha Vision TNO-3030T IP bullet camera, 320 x 240
