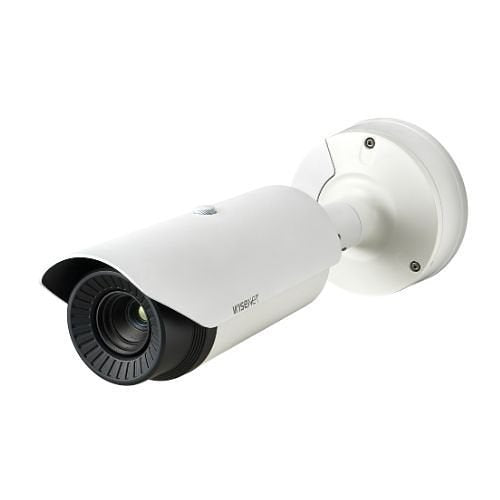

Hanwha Vision TNO-3050T IP bullet camera, 320 x 240

Free Delivery
£ 3,688 05
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision TNO-3050T is an IP bullet camera from the T range.

The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting. Choose from seven different types of colour palette to get the best image depending on situation. Easily detect events that occur at long distances (detection range up to 4,472m).

Digital Image Stabilization with built-in Gyro sensor allows to correct the effects of vibration caused by environmental factors, such as wind, while also compensating for rolling shutter effects. Enhanced video and audio analytics improves the overall security system’s efficiency by automatically notifying users when abnormal behaviour is detected.

Key features

  • 320 x 240 resolution support
  • Horizontal 6.3°, Vertical 4.7° field of view
  • H.265, H.264, MJPEG codec
  • Max. 30fps@all resolutions (H.265, H.264, MJPEG)
  • Motion detection, Handover, Tampering, Loitering
  • Directional detection, Audio detection, Shock detection
  • Micro SD / SDHC / SDXC memory slot (Max. 256GB)
  • Hallway View, WiseStreamII support
  • PoE, 24VAC, 12VDC
  • IP66, NEMA4X

If you are matching this to an existing installation, work from the TNO-3050T part number rather than the description.

£ 3,688 05
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£3,688.05 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNO-3050T
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
6.3°
Field of View (Vertical)
4.70°
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
35.00mm
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
320 x 240
Video Signal Format
CVBS (Composite)
Wide Dynamic Range
Yes
Camera
Image Sensor Type
Uncooled Microbolometer
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
320 x 240
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
35mm
Lens Included
Yes
Maximum Focal Length
35.00mm
Maximum Thermal Focal Length
35.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Waterproof
Form Factor
Bullet
Weight
2.74kg
Power description
Input Voltage
12V DC, 24V AC
Product information
Diameter
147.50mm
Length
401.30mm
Mount Type
Desktop Mount, Rack Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Miscellaneous
Features
Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection
Attributes
Input Voltage
12V DC, 24V AC
Weight
2.74kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number TNO-3050T
Product Series T
Product Type Network Camera

Technical information

Connectivity Technology Wired
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 6.3°
Field of View (Vertical) 4.70°
Lens Type Fixed
Maximum Aperture f/1
Maximum Frame Rate 30fps
Minimum Focal Length 35.00mm
Night Vision Type Active Illumination, Near-Infrared (NIR)
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 320 x 240
Video Signal Format CVBS (Composite)
Wide Dynamic Range Yes

Camera

Image Sensor Type Uncooled Microbolometer

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 320 x 240

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 90%

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 35mm
Lens Included Yes
Maximum Focal Length 35.00mm
Maximum Thermal Focal Length 35.00mm

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Waterproof
Form Factor Bullet
Weight 2.74kg

Power description

Input Voltage 12V DC, 24V AC

Product information

Diameter 147.50mm
Length 401.30mm
Mount Type Desktop Mount, Rack Mount, Wall Mount

Storage

Storage Type SD Card

Video

Analog Video Signal Format CVBS (Composite Video Baseband Signal)

Miscellaneous

Features Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection

Attributes

Input Voltage 12V DC, 24V AC
Weight 2.74kg

Hanwha Vision TNO-3050T IP bullet camera

Hanwha Vision TNO-3050T IP bullet camera, 320 x 240

Who this is for

For the installer — this is the IP bullet camera supplied under Hanwha Vision part number TNO-3050T. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an IP bullet camera made by Hanwha Vision. The part number TNO-3050T is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP bullet camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP bullet camera I have been quoted? Check the manufacturer part number TNO-3050T against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TNO-3050T answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
