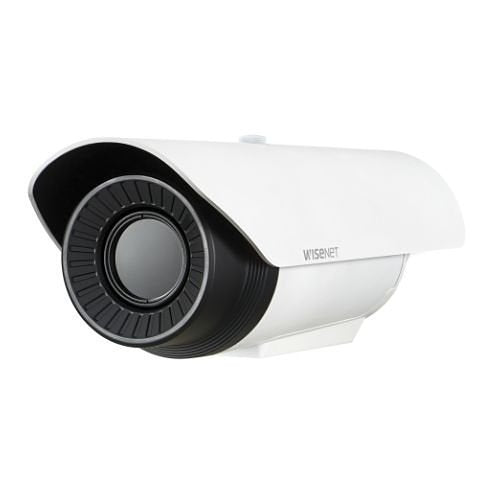

Hanwha Vision TNO-4041T IP bullet camera, 640 x 480
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNO-4041T is an IP bullet camera from the T range.
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice: they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily.
The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.
Key features
- High resolution thermal VGA (640 x 480) resolution
- Outdoor camera for Pan/Tilt head integration
- Built-in 19mm fixed lens
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNO-4041T |
| Product Series | T |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1.0 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 19.00mm |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
Camera
| Image Sensor Type | Microbolometer |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 640 x 480 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 19mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 19.00mm |
| Maximum Thermal Focal Length | 19.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Form Factor | Bullet |
| Height | 309.00mm |
| Weight | 2.45kg |
| Width | 101.97mm |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 102.00mm |
|---|
Storage
| Storage Type | HDD, Network Attached Storage (NAS), SD Card, SSD |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC, 24V AC |
| Weight | 2.45kg |
