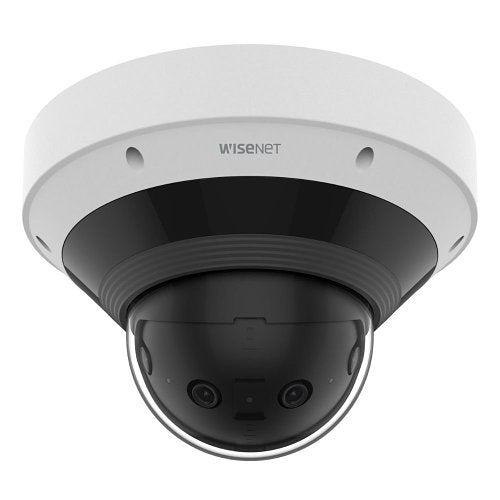

Hanwha Vision PNM-C9022RV IP dome camera, 8MP
Free Delivery
£
1,394
49
(Incl. VAT)
About this product
Hanwha Vision PNM-C9022RV is an IP dome camera from the P range.
Discover the cutting-edge Hanwha PNM-C9022RV 8MP AI Panoramic IP Dome Camera, designed to deliver a comprehensive 8MP panoramic view with a 2.8mm fixed lens. Experience unparalleled surveillance with IR capabilities up to 20m and WiseIR technology. This robust camera supports multiple codecs including H.265, H.264, and MJPEG, ensuring high-quality video at up to 20fps.
Equipped with Day/Night functionality and extremeWDR for clear images in varying light conditions, it also features a hard-coated dome bubble for durability. Advanced AI-driven analytics allow for precise object classification and event detection, enhancing security measures. Rated IP66 and IK10, it's built to withstand harsh environments.
Enhance your security setup with this reliable and efficient solution. Act now to secure your premises!
Key features
- Max. 8MP panoramic stitched image
- IR viewable length Maximum 20m, WiseIR
- H.265 / H.264 / MJPEG Max. 20fps
- H.265, H.264, MJPEG Codec
- Day and Night (ICR), extremeWDR (120dB)
- Hard-coated dome bubble
- WiseNRII(Based on AI engine), WiseStreamIII (Based on AI engine)
- Analytics events based on AI engine; Object classification(Person / Vehicle)
- Analytics events; Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear / Disappear)
- IP66, IK10, NEMA 250 type 4X
£
1,394
49
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNM-C9022RV
Product Series
P
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Field of View (Horizontal)
209.0°
Field of View (Vertical)
60.00°
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
20fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
Ingress protection
IP66
Display & graphics
Number of Sensors
4
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0100lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
170.00mm
Weight
2.90kg
Power description
Input Voltage
12V DC
Product information
Diameter
253.00mm
Mount Type
Pendant Mount
Storage
Storage Type
SD Card
Miscellaneous
Environmental certification
IEC/EN 62262, IEC/EN 63000 IEC/EN 60529, NEMA 250 Type 4X
Features
Audio Detection, Back Light Compensation (BLC), Day/Night, Gain Control, Human Detection, Motion Detection, Noise Reduction, Tamper Detection, Vehicle Detection, Video Content Analytics, Wide Dynamic Range
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
2.90kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | PNM-C9022RV |
| Product Series | P |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Field of View (Horizontal) | 209.0° |
| Field of View (Vertical) | 60.00° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Number of Sensors | 4 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Height | 170.00mm |
| Weight | 2.90kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 253.00mm |
|---|---|
| Mount Type | Pendant Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | IEC/EN 62262, IEC/EN 63000 IEC/EN 60529, NEMA 250 Type 4X |
|---|---|
| Features | Audio Detection, Back Light Compensation (BLC), Day/Night, Gain Control, Human Detection, Motion Detection, Noise Reduction, Tamper Detection, Vehicle Detection, Video Content Analytics, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 2.90kg |
