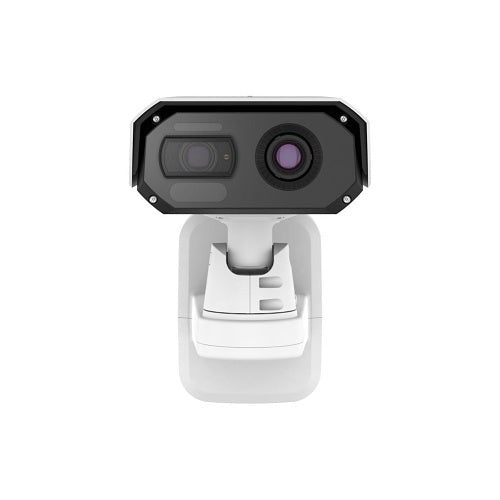

Hanwha Vision TNM-C4942TDR ir thermal camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNM-C4942TDR is an ir thermal camera from the T range.
Discover the advanced capabilities of the Hanwha TNM-C4942TDR Bi-spectrum AI IR Thermal Camera, designed for robust outdoor surveillance. This high-tech camera combines 8MP visible and VGA thermal imaging for comprehensive bi-spectrum monitoring. It features AI-based object classification, accurately identifying both people and vehicles across channels.
With remote temperature monitoring from -20 to 130°C and ten polygonal ROI areas, it ensures precise temperature assessments. Its versatile installation options, including wall and pole mounts, make it ideal for various setups. Enhance your security system with this all-in-one solution today!
Key features
- Radiometry AI Bi-Spectrum for Outdoor environment
- Bi-Spectrum monitoring with 8MP visible and VGA thermal
- AI Based Object classification with Both Channels (person / vehicle)
- Remote Temperature Monitoring within -20 to 130°C range
- 10 Of polygonal ROI areas for temperature monitoring
- Improved All-in-One installation solution (wall and pole)
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNM-C4942TDR |
| Product Series | T |
| Product Type | Thermal Camera |
Technical information
| Effective resolution | 8MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.40mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 2.2x |
| Video Resolution | 3840 x 2160 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 s |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.4-9.3mm, 9.1mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 9.30mm |
| Maximum Thermal Focal Length | 9.10mm |
| Minimum Aperture | f/2.15 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 191.20mm |
| Height | 287.50mm |
| Material | Aluminum |
| Weight | 4.53kg |
| Width | 353.40mm |
Power description
| Input Voltage | 12V DC |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 4.53kg |
