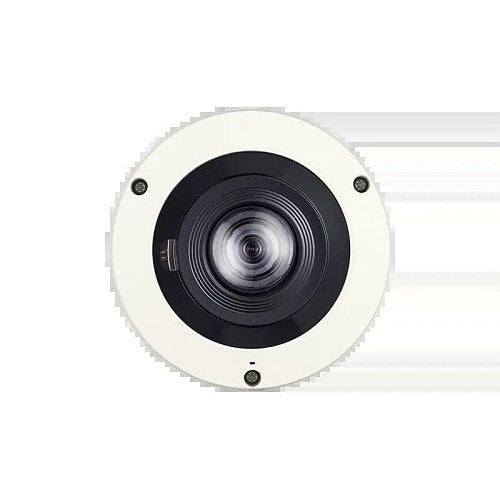

Hanwha Vision XNF-8010RVM mobile fisheye, 4MP
Free Delivery
£
684
48
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNF-8010RVM is a mobile fisheye from the X range.
Discover the cutting-edge Hanwha XNF-8010RVM X Series 6MP Sensor 360 Mobile Fisheye, designed for mobile applications. This camera features WiseStream II compression technology, enhancing video quality while reducing storage needs. It's equipped with advanced detection capabilities including loitering, directional, fog, tampering, and motion detection, as well as object tracking.
Additionally, it offers unique analytics like sound classification, heatmap generation, people counting, and queue management. The dual SD card slots ensure ample storage, and the robust M12 connector guarantees reliable performance in mobile environments.
Key features
- WiseStream II compression technology
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Sound classification, heatmap, people counting and queue line management
- Dual SD card slots
- M12 connector for Mobile applications
£
684
48
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNF-8010RVM
Product Series
X
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
192.0°
Field of View (Vertical)
192.00°
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
1.60mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
Ingress protection
IP66
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
2 Second
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
1.6mm
Lens Included
Yes
Maximum Focal Length
1.60mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Fisheye
Height
65.80mm
Weight
790.00g
Power description
Input Voltage
12V DC
Product information
Diameter
146.00mm
Mount Type
Corner Mount, Flush Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Built-in IR LED, Day/Night, Defog, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC
Weight
790.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNF-8010RVM |
| Product Series | X |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 192.0° |
| Field of View (Vertical) | 192.00° |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.60mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| Ingress protection | IP66 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 1.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 1.60mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Fisheye |
| Height | 65.80mm |
| Weight | 790.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 146.00mm |
|---|---|
| Mount Type | Corner Mount, Flush Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Built-in IR LED, Day/Night, Defog, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 790.00g |
