Hanwha Vision PNM-C16083RVQ multi-directional IP camera, 4MP

Free Delivery
£ 1,752 60
(Incl. VAT)

About this product

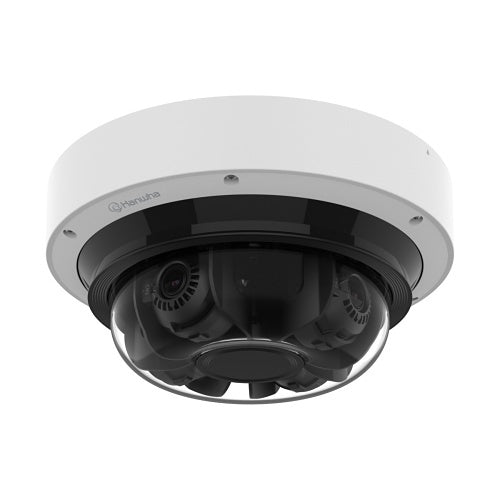

Hanwha Vision PNM-C16083RVQ is a multi-directional IP camera from the P range.

The new 4CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.

Key features

  • 360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
  • 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
  • AI based loitering detection and line crossing detection
  • AI based WiseNR?, Auto prefer shutter control, WiseStream?
  • Compact size & semi-modular design
  • Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
  • Reinforced durability (IP66, IK10, NEMA4X)
  • Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
  • Fixed camera iris is ideal for indoor video surveillance where light levels are constant and unchanged
  • Varifocal lens type to ensure maximum surveillance dependability and optimal performance

If you are matching this to an existing installation, work from the PNM-C16083RVQ part number rather than the description.

£ 1,752 60
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,752.60 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNM-C16083RVQ
Product Series
P
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
100.0°
Field of View (Vertical)
54.00°
Lens Type
Varifocal
Maximum Aperture
f/1.5
Maximum Frame Rate
30fps
Minimum Focal Length
3.30mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 High Profile, H.265 Main Profile, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2592 x 1520
Number of Sensors
4
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0075lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.3-5.7mm
Lens Included
Yes
Maximum Focal Length
5.70mm
Minimum Aperture
f/1.9
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
114.20mm
Weight
2.73kg
Product information
Diameter
250.00mm
Mount Type
Conduit Box Mount, Gang Box Mount, Pendant Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Cross Line Detection, Day/Night, Face Detection, Gain Control, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
2.73kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number PNM-C16083RVQ
Product Series P
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 100.0°
Field of View (Vertical) 54.00°
Lens Type Varifocal
Maximum Aperture f/1.5
Maximum Frame Rate 30fps
Minimum Focal Length 3.30mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 2.0x
Video Formats H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 High Profile, H.265 Main Profile, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 15.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 2592 x 1520
Number of Sensors 4

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 2 Second
Minimum Illumination 0.0075lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 3.3-5.7mm
Lens Included Yes
Maximum Focal Length 5.70mm
Minimum Aperture f/1.9

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Height 114.20mm
Weight 2.73kg

Product information

Diameter 250.00mm
Mount Type Conduit Box Mount, Gang Box Mount, Pendant Mount

Storage

Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Features Cross Line Detection, Day/Night, Face Detection, Gain Control, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Weight 2.73kg

Hanwha Vision PNM-C16083RVQ multi-directional IP camera

Hanwha Vision PNM-C16083RVQ multi-directional IP camera, 4MP

Who this is for

For the installer — this is the multi-directional IP camera supplied under Hanwha Vision part number PNM-C16083RVQ. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a multi-directional IP camera made by Hanwha Vision. The part number PNM-C16083RVQ is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this multi-directional IP camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact multi-directional IP camera I have been quoted? Check the manufacturer part number PNM-C16083RVQ against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PNM-C16083RVQ answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
