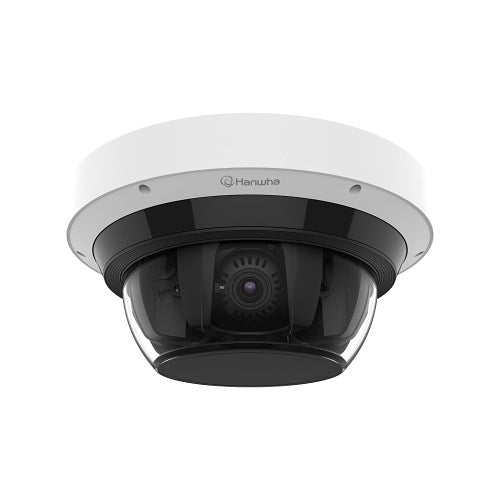

Hanwha Vision PNM-C32083RQZ multi-directional IP camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision PNM-C32083RQZ is a multi-directional IP camera from the P range.
Introducing the Hanwha PNM-C32083RQZ P Series 4-Channel x8MP AI IR PTRZ Multi-Sensor / Multi-Directional IP Camera, designed to elevate your surveillance experience. This advanced camera features integrated motorized varifocal lenses ranging from 3.3 to 5.7mm, allowing for flexible and precise monitoring. With its AI capabilities, it intelligently analyzes scenes for enhanced security, while the multi-directional design ensures comprehensive coverage.
Perfect for both residential and commercial applications, this camera combines cutting-edge technology with user-friendly operation.
Key features
- AI engine-based analysis events; Object detection (people/faces/vehicles/license plates), virtual lines (passing/direction), virtual areas (wandering/intrusion/entering/exiting)
- Attributes; Vehicles (Type, car/bus/truck/motorcycle/bicycle, color), people (clothing color)
- BestShot Support
- AI Based WiseN II, Auto prefer shutter control, WiseStream III
- PTRZ Control; Remotely set lens position/angle
- IR Visibility; up to 25m
- Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
- Reinforced durability (IP66, IK10, NEMA4X)
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | PNM-C32083RQZ |
| Product Series | P |
| Product Type | Camera |
Technical information
| Effective resolution | 8MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1.3 |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 4.38mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 2.1x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|---|
| Number of Sensors | 4 |
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Minimum Illumination | 0.0000lux |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.38-9.33mm |
|---|---|
| Maximum Focal Length | 9.33mm |
Physical characteristics
| Colour | White |
|---|---|
| Height | 145.90mm |
Product information
| Diameter | 312.70mm |
|---|---|
| Length | 145.90mm |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | UL Listed |
|---|---|
| Environmental status | Yes |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Hanwha Vision PNM-C32083RQZ multi-directional IP camera, 8MP
