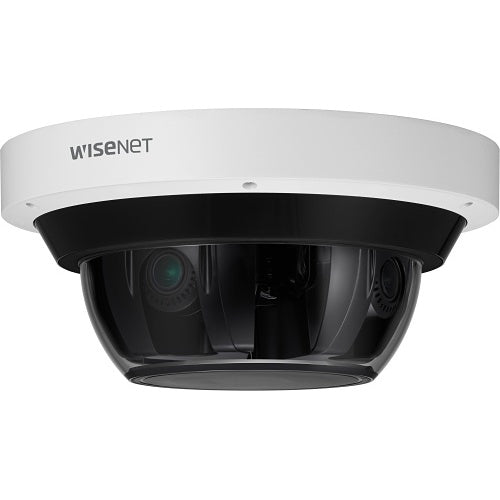

Hanwha Vision PNM-9085RQZ1 multi-directional ptrz camera, 20MP
Free Delivery
£
2,114
16
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision PNM-9085RQZ1 is a multi-directional ptrz camera from the P range.
The PNM-9085RQZ1 from Samsung is a 20 megapixel (5 megapixel x 4) multi-sensor, multi-directional outdoor PTRZ camera with 4.13-9.4mm lens.
Key features
- For remote surveillance needs, this network camera is best suited
- Provides night vision of objects at a distance of up to 30 m
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
£
2,114
16
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNM-9085RQZ1
Product Series
P
Product Type
Panoramic Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
20MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
87.6°
Field of View (Vertical)
64.58°
Lens Type
Varifocal
Maximum Aperture
f/1.9
Maximum Frame Rate
30fps
Minimum Focal Length
4.10mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1920
Number of Sensors
4
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.13-9.4mm
Lens Included
Yes
Maximum Focal Length
9.40mm
Minimum Aperture
f/2.67
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Weight
5.20kg
Power description
Input Voltage
12V DC
Product information
Diameter
315.00mm
Mount Type
Pendant Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Password Protection, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
5.20kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | PNM-9085RQZ1 |
| Product Series | P |
| Product Type | Panoramic Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 20MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 87.6° |
| Field of View (Vertical) | 64.58° |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.9 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.10mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1920 |
|---|---|
| Number of Sensors | 4 |
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.13-9.4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 9.40mm |
| Minimum Aperture | f/2.67 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Weight | 5.20kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 315.00mm |
|---|---|
| Mount Type | Pendant Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Password Protection, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 5.20kg |
Hanwha Vision PNM-9085RQZ1 multi-directional ptrz camera, 20MP
