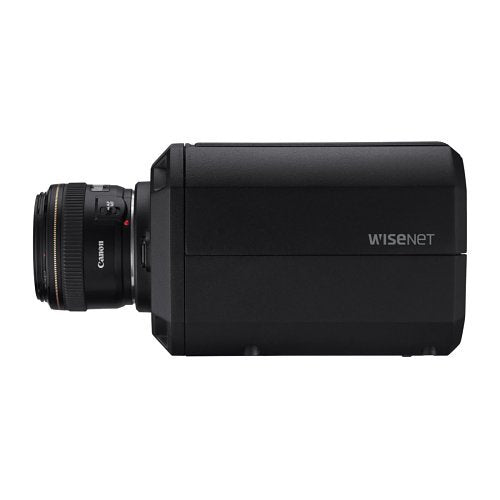

Hanwha Vision TNB9000 n-box camera, 33MP

Free Delivery
£ 9,533 73
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision TNB9000 is a n-box camera from the T range.

8K resolution Camera

TNB-9000 represents the highest performing, highest resolution camera to date of Wisenet lineup. The ability to digitally zoom in to any area of an image without losing detail provides a powerful alternative to traditional multi-camera installations. Suited for stadiums

TNB-9000 utilizes a full size 36mm CMOS sensor to deliver true 8K performance at up to 15fps. The camera is ideally suited for stadiums, airports and similar large spaces where installing multiple cameras may be impractical or cost prohibitive. It supports EF (Electro Focus) mount lenses, with remote focus, gives customers exceptional flexibility in lens options and low light performance.

Key features

  • 43.3mm full-frame CMOS Image Sensor
  • Max.15fpsat 8K, 20fpsat 24MP, 30fpsat 15MP, 60fpsat 4K
  • Compatible with Canon EF mount Lens
  • Intelligent video analytics based on AI (Object detection/classification, Attribute, BestShot)
  • HDMI (1080p 30fps) Video Output
  • H.265/H.264: Main/High, MJPEG
  • Single Micro SD slot (Up to 256GB)
  • WiseStreamⅡ support
  • RJ-45, SFP slot(100/1000Mbps)
  • HPoE(IEEE802.3bt, Class5), 12VDC

If you are matching this to an existing installation, work from the TNB9000 part number rather than the description.

£ 9,533 73
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£9,533.73 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNB9000
Product Series
T
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
33MP
Lens Mount Type
EF-Mount
Maximum Frame Rate
15fps
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum video resolution
7680 x 4320
Environmental conditions
Maximum Operating Temperature
45°C
Minimum Operating Temperature
0°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0015lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
HDMI
Yes
Network (RJ-45)
Yes
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Black
Depth
179.00mm
Height
118.10mm
Weight
2.10kg
Width
120.00mm
Power description
Input Voltage
12V DC
Product information
Mount Type
Junction Box Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
12V DC
Weight
2.10kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number TNB9000
Product Series T
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 33MP
Lens Mount Type EF-Mount
Maximum Frame Rate 15fps
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Display & graphics

Maximum video resolution 7680 x 4320

Environmental conditions

Maximum Operating Temperature 45°C
Minimum Operating Temperature 0°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0015lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

HDMI Yes
Network (RJ-45) Yes

Network & communication

Remote Management Yes

Physical characteristics

Colour Black
Depth 179.00mm
Height 118.10mm
Weight 2.10kg
Width 120.00mm

Power description

Input Voltage 12V DC

Product information

Mount Type Junction Box Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Features Alarm Triggering, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance

Attributes

Indoor or outdoor use Indoor, Outdoor
Input Voltage 12V DC
Weight 2.10kg

Hanwha Vision TNB9000 n-box camera

Hanwha Vision TNB9000 n-box camera, 33MP

Who this is for

For the installer — this is the n-box camera supplied under Hanwha Vision part number TNB9000. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a n-box camera made by Hanwha Vision. The part number TNB9000 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this n-box camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact n-box camera I have been quoted? Check the manufacturer part number TNB9000 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TNB9000 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
