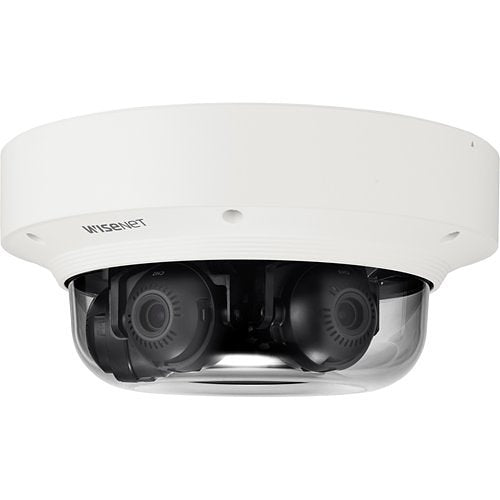

Hanwha Vision PNM-8082VT network camera, 6MP

Free Delivery
£ 1,186 80
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision PNM-8082VT is a network camera from the P range.

Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 3x 2MP sensors for a total resolution of 6MP. Each camera head features 30fps, a motorized vari-focal lens 2x (3.0~6.0mm) (107°~56.3°), maximum 321° FoV, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, defocus detection, built-in analytics, true D/N, 2x SD card slots, hallway view, HLC, PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.

Key features

  • Maximum 6MP at 30fps, 2MP X 3 sensors using one IP address
  • Motorized vari-focal 3.0~ 6mm (FOV: 107? ~ 56.3?)
  • Triple codec: H.265, H.264 and MJPEG multiple streaming
  • WiseStream II compression technology
  • WDR 150dB @ 2MP @ 30fps
  • Defocus detection, Loitering, directional detection, tampering, motion detection, object enter or exit an area
  • Hallway view supported for each sensor
  • 2x microSD/SDHC/SDXC Memory Card slots
  • Power: PoE+ (IEEE802.3at)
  • IP66, IK10, NEMA4X

If you are matching this to an existing installation, work from the PNM-8082VT part number rather than the description.

£ 1,186 80
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,186.80 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNM-8082VT
Product Series
P
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
6MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
107.0°
Field of View (Vertical)
57.00°
Lens Type
Varifocal
Maximum Aperture
f/3.1
Maximum Frame Rate
30fps
Minimum Focal Length
3.00mm
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
CE marking
Yes
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Number of Sensors
3
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3-6mm
Lens Included
Yes
Maximum Focal Length
6.00mm
Minimum Aperture
f/2.2
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Weight
3.00kg
Product information
Diameter
251.00mm
Mount Type
Backbox Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Features
Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Tamper Detection
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
3.00kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number PNM-8082VT
Product Series P
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 6MP
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 107.0°
Field of View (Vertical) 57.00°
Lens Type Varifocal
Maximum Aperture f/3.1
Maximum Frame Rate 30fps
Minimum Focal Length 3.00mm
Night Vision Type Active Illumination, Near-Infrared (NIR)
Optical Zoom 2.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Certifications

CE marking Yes
Ingress protection IP66

Display & graphics

Maximum video resolution 1920 x 1080
Number of Sensors 3

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 2 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 3-6mm
Lens Included Yes
Maximum Focal Length 6.00mm
Minimum Aperture f/2.2

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Weight 3.00kg

Product information

Diameter 251.00mm
Mount Type Backbox Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats H.264, H.265 / HEVC

Video

Analog Video Signal Format CVBS (Composite Video Baseband Signal)
Maximum Resolution 1280 x 720

Miscellaneous

Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Tamper Detection
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Weight 3.00kg

Hanwha Vision PNM-8082VT network camera

Hanwha Vision PNM-8082VT network camera, 6MP

Who this is for

For the installer — this is the network camera supplied under Hanwha Vision part number PNM-8082VT. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a network camera made by Hanwha Vision. The part number PNM-8082VT is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this network camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact network camera I have been quoted? Check the manufacturer part number PNM-8082VT against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PNM-8082VT answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Hanwha Vision PNM-8082VT network camera
Hanwha Vision

Hanwha Vision PNM-8082VT network camera, 6MP

£1,186.80

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision PNM-8082VT is a network camera from the P range.

Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 3x 2MP sensors for a total resolution of 6MP. Each camera head features 30fps, a motorized vari-focal lens 2x (3.0~6.0mm) (107°~56.3°), maximum 321° FoV, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, defocus detection, built-in analytics, true D/N, 2x SD card slots, hallway view, HLC, PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.

Key features

If you are matching this to an existing installation, work from the PNM-8082VT part number rather than the description.
