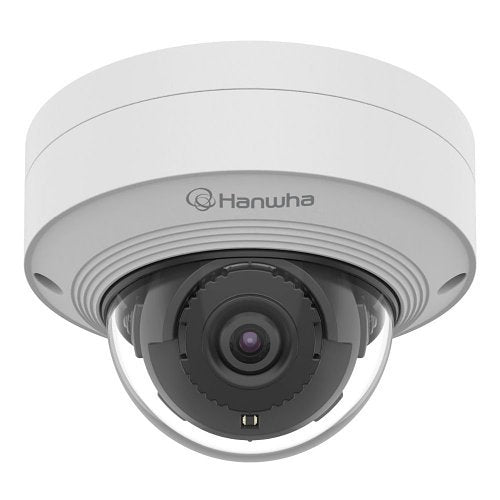

Hanwha Vision QNV-C8012 network camera, 5MP
Free Delivery
£
403
65
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision QNV-C8012 is a network camera from the Q range.
False alarm reduction
Q series AI cameras detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals. Q series AI cameras are able to help improve operator efficiency even with conventional motion detection.
Various resolution options from 2MP to 8MP
Q series AI cameras offer a variety of cameras with resolutions ranging from 2MP to 8MP, so users can choose the right one for environmental needs. Wider Field of View of Q series micro vandal camera
QNV-C8012 provides a wider angle of view than the previous Q series models with a 2.8mm lens, allowing users to monitor a wider area.
Key features
- Max. 5MP resolution
- Max. 30fps
- Color; 0.05Lux(F2.0, 1/30sec), BW; 0.005Lux(F2.0, 1/30sec, 30IRE)
- 2.4mm Fixed focal
- H.265, H.264, MJPEG Codec supported
- Multiple streaming, up to 5 profiles
- Day and Night (ICR), WDR (120dB)
- IP66, IK10, NEMA4X
- IP66, IK10, NEMA4X
£
403
65
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNV-C8012
Product Series
Q
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
123.0°
Field of View (Vertical)
91.00°
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
2.40mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0050lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.4mm
Lens Included
Yes
Maximum Focal Length
2.40mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Vandalproof, Waterproof
Form Factor
Dome
Height
77.00mm
Weight
522.00g
Product information
Diameter
110.00mm
Mount Type
Backbox Mount, Conduit Box Mount, Pendant Mount
Storage
Recording Formats
H.264
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Mirror, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
522.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | QNV-C8012 |
| Product Series | Q |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 123.0° |
| Field of View (Vertical) | 91.00° |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.40mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.40mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Vandalproof, Waterproof |
| Form Factor | Dome |
| Height | 77.00mm |
| Weight | 522.00g |
Product information
| Diameter | 110.00mm |
|---|---|
| Mount Type | Backbox Mount, Conduit Box Mount, Pendant Mount |
Storage
| Recording Formats | H.264 |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Mirror, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 522.00g |
|---|
