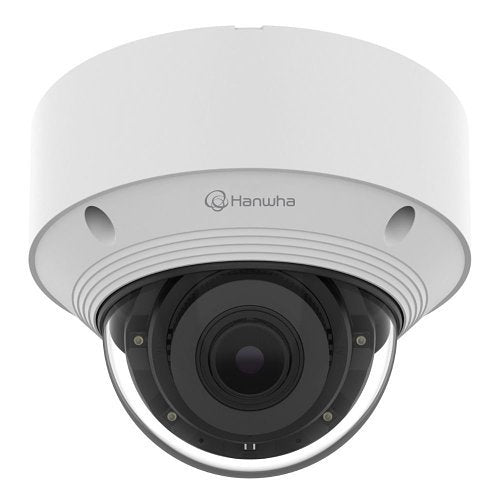

Hanwha Vision QNV-C9083R network camera, 8MP
Free Delivery
£
576
15
(Incl. VAT)
About this product
Hanwha Vision QNV-C9083R is a network camera from the Q range.
Discover the power of high-definition surveillance with the Hanwha QNV-C9083R/VEX Q Series 8MP Vandal Dome Camera. Equipped with a 3.2-10.2mm motorized varifocal lens, this camera delivers crystal-clear images at up to 8MP resolution and 30 frames per second. Experience superior low-light performance with color visibility down to 0.06 Lux and black-and-white at 0.006 Lux.
It supports H.265, H.264, and MJPEG codecs, ensuring efficient video compression and multiple streaming options. The robust design is both IP66 weatherproof and IK10 vandal-resistant, making it ideal for outdoor use. With features like Day and Night (ICR) and Wide Dynamic Range (WDR) of 120 dB, it adapts to varying lighting conditions.
Power over Ethernet (PoE) simplifies installation by combining power and connectivity into a single cable. Enhance your security setup now with this versatile and durable camera.
Key features
- Max. 8MP resolution
- Max. 30fps
- Color; 0.06Lux(F1.6, 1/30sec), BW; 0.006Lux(F1.6, 1/30sec, 30IRE)
- 3.2-10.2mm(3.2X) Motorized varifocal
- H.265, H.264, MJPEG Codec supported
- Multiple streaming, up to 5 profiles
- Day and Night (ICR), WDR (120dB)
- IP66, IK10
- PoE; Max 12.95W
£
576
15
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNV-C9083R
Product Series
Q
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
104.0°
Field of View (Vertical)
55.00°
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 High Profile, H.265 Main Profile, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0060lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.2-10.2mm
Lens Included
Yes
Maximum Focal Length
10.20mm
Minimum Aperture
f/3.1
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
110.20mm
Weight
875.00g
Product information
Diameter
140.00mm
Mount Type
Backbox Mount, Conduit Box Mount, Gang Box Mount, Pendant Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
CE, IEC/EN 60529, IEC/EN 62262, IEC/EN 63000
Features
Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Mirror, Motion Detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Impact protection
IK10
Attributes
Weight
875.00g
